Bently Nevada 3500/25-01-03-00 135473-01 Internal Barrier I/O with Internal Terminations

Bently Nevada 3500/25-01-03-00 135473-01 Internal Barrier I/O with Internal Terminations

The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack.To avail our best deals for 135473-01 Keyphasor I/O Module, contact us and we will get back to you within 24 hours. US$1,000.00
  • Brand :

    Bently Nevada
  • Part number :

    135473-01
  • Description :

    Keyphasor I/O Module
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    241.3 mm x 24.4 mm x 103.1 mm
  • Weight :

    0.46 kg
  • Payment :

    Bank Transfer
Contact Us:

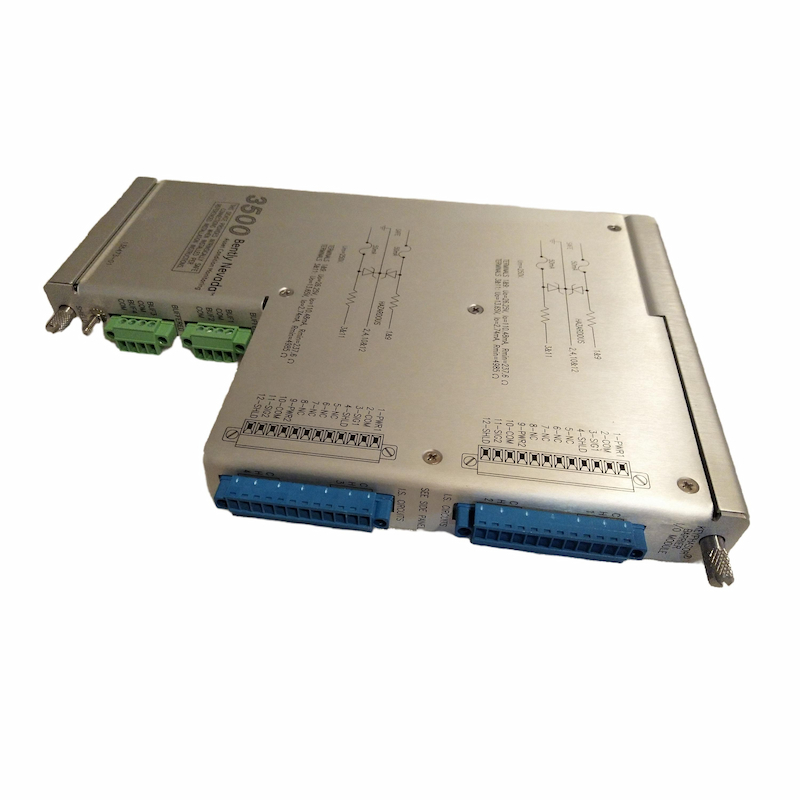

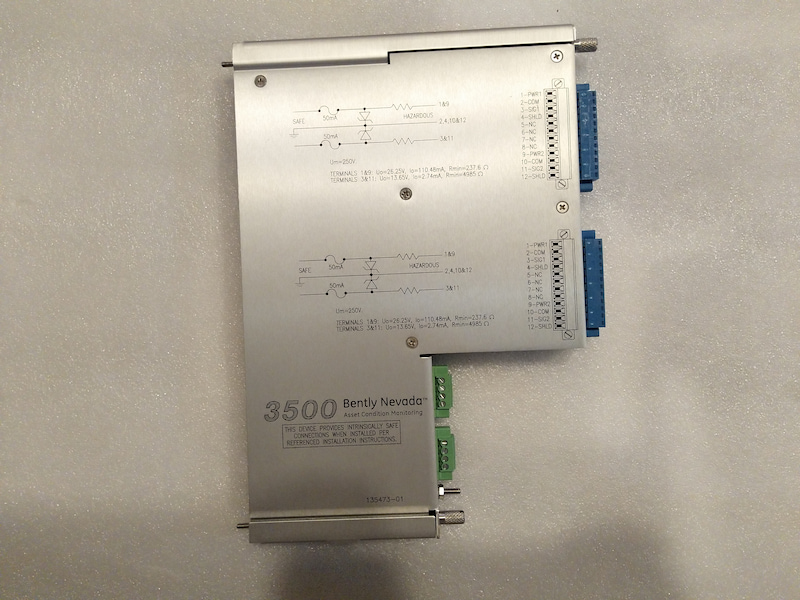

Bently Nevada 135473-01 Keyphasor I/O Module with Internal Barriers and Internal Terminations



The 135473-01 is a Keyphasor I/O Module with Internal Barriers and Internal Terminations, it's manufactured and designed by Bently Nevada. It is a part of the Bently Nevada 3500/25 Enhanced Keyphasor Module.



The Isolated Keyphasor I/O module is designed for applications where the Keyphasor signals are tied in parallel to multiple devices and require isolation from other systems, such as a control system. The Isolated I/O module was created specifically for Magnetic Pickup applications but is compatible with and will provide isolation for Proximitor* applications as long as an external power supply is provided.



The intent of this I/O module was primarily to measure shaft speed and not phase. The module can provide phase measurements, but this I/O introduces a slightly higher phase shift than the Non-Isolated I/O version. Figure 1 shows the amount of phase shift that the Isolated I/O modules will add at different machine speeds.



Enhanced product features include generation of once-per-turn event signals from multievent-per-turn inputs, field-upgradeable firmware, and asset management data reporting.



Technical Specifications

Manufacturer Bently Nevada
Part Number 135473-01
Ordering Information 3500/25-01-03-00
Product Catalog 3500/25-01-03-00
Description Keyphasor I/O Module with Internal Barriers and Internal Terminations
Voltage 24 Vdc
Current 40 mA
Dimension 241.3 mm x 24.4 mm x 103.1 mm
Weight 0.46 kg



135473-01





100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com
