The DO01 digital output module provides up to 16, CH-2-CH isolated transistor type, 24 to 48 VDC output signals. For the best price on ABB DO01, please contact us and we will get back to you within 24 hours. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.
Brand :
ABBPart number :
DO01Description :
Digital Output ModuleOrigin :
IndiaCondition :
NewDimension :
51 mm x 190 mm x 138 mmWeight :
0.4 kgPayment :
Bank Transfer

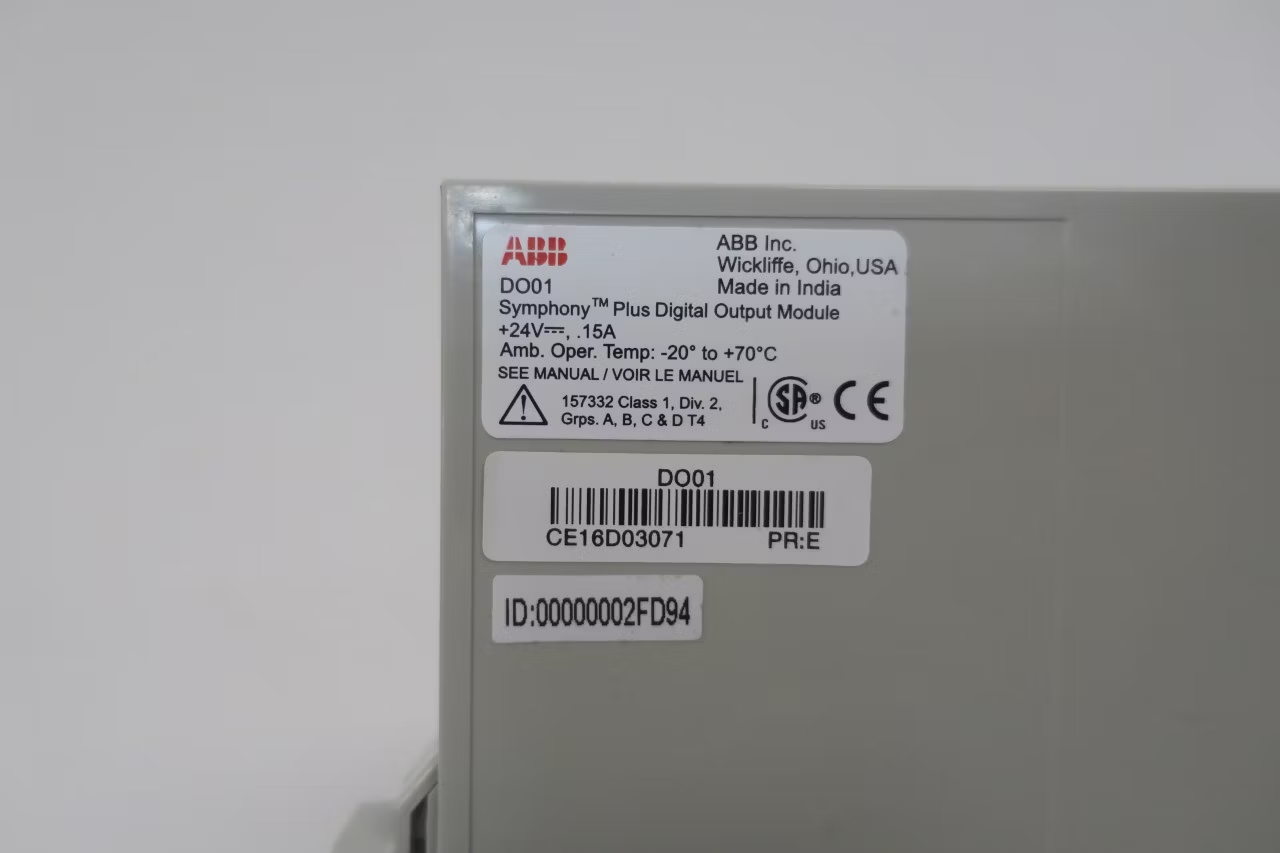

ABB DO01 Digital Output Module
The DO01 digital output module provides up to 16, CH-2-CH isolated transistor type, 24 to 48 VDC output signals. The open-collector outputs of the module are capable of sinking or sourcing up to 250 mADC.
FC 221 (I/O Device Definition) sets DO module operating parameters and each output channel is configured using FC 225 (Digital Output CH) to set indivdual output channel parameters such as alarm state setting, default state on loss of communication with controller, etc.
Features and benefits
· 16 individually CH-2-CH isolated DI channels supporting
· 24 to 48 VDC Transistor Type DO signals
· Module can sink or source up to 250 mADC I/O current
· Input Status LEDs on module front plate
· Galvanic isolation of 1500 V for up to 1 minute
| Article number | DO01 |
| Type | Digital Output |
|
Power requirements
|
24 VDC +12%, -10% at 65 mA typical, 73 mA max.
|
|
Digital output channels
|
16 independently configured channels
|
|
- Ambient range 1
|
24 VDC, 250 mA per channel
|
|
- Ambient range 2
|
48 VDC, 125 mA per channel
|
|
Ambient temperature
|
-20 °C to 70 °C (-4 °F to 158 °F). Tested according
to IEC/EN 60068-2-1, IEC/EN 60068-2-2
|
|
Service port
|
1 mini-USB port
|
|
Dimensions (with base)
|
51mm width, 190 mm height, 138 mm depth
( 2 in. width, 7.48 in. height, 5.43 in. depth)
|
| Weight | 0.4 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
