The DI04 digital input module processes up to 16 individual Digital. Input signals. Each channel is individually CH-2-CH isolated and supports 48 VDC inputs. For the best price on ABB DI04, please contact us and we will get back to you within 24 hours.
Brand :
ABBPart number :
DI04Description :
Digital Input ModuleOrigin :
IndiaCondition :
NewDimension :
51 mm x 190 mm x 138 mmWeight :
0.4 kgPayment :
Banl Transfer

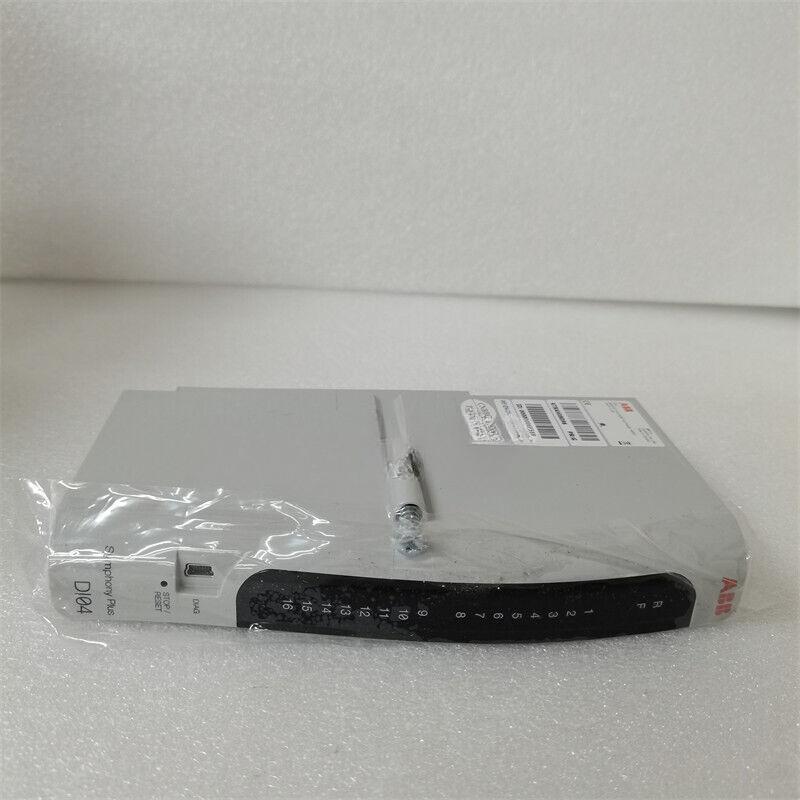

ABB DI04 Digital Input Module
The DI04 digital input module processes up to 16 individual Digital Input signals. Each channel is individually CH-2-CH isolated and supports 48 VDC inputs. FC 221 (I/O Device Definition) sets DI module operating parameters and each input channel is configured using FC 224 (Digital Input CH) to set input channel parameters such as alarm state, debounce period, etc.
The DI04 module does not support Sequence of Events (SOE).
Features and benefits
· 16 individually CH-2-CH isolated DI channels supporting
· 48 VDC Digital Input signals
· Configurable contact debounce time up to 255 msec
· DI04 module can sink or source I/O current
· Input Status LEDs on module frontplate
· Galvanic isolation of 1500 V for up to 1 minute
· DI04 does not support SOE
|
Article number
|
DI04 |
|
Type
|
Digital Input |
|
Power requirements
|
24 VDC +12%, -10% at 59 mA typical, 66 mA maximum
|
|
Digital input channels
|
16 independently configured channels
|
|
Digital input operating range
|
48 VDC, 1.5 mA typical, 1.7 mA max per channel
|
|
Ambient temperature
|
-20° to 70°C (-4° to 158°F).
Tested according to IEC/EN 60068-2-1, IEC/EN 60068-2-2
|
|
Service port
|
1 mini-USB port
|
|
Dimensions (with base)
|
51 mm width, 190 mm height, 138 mm depth
(2 in. width, 7.48 in. height, 5.43 in. depth)
|
| Weight | 0.4 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
