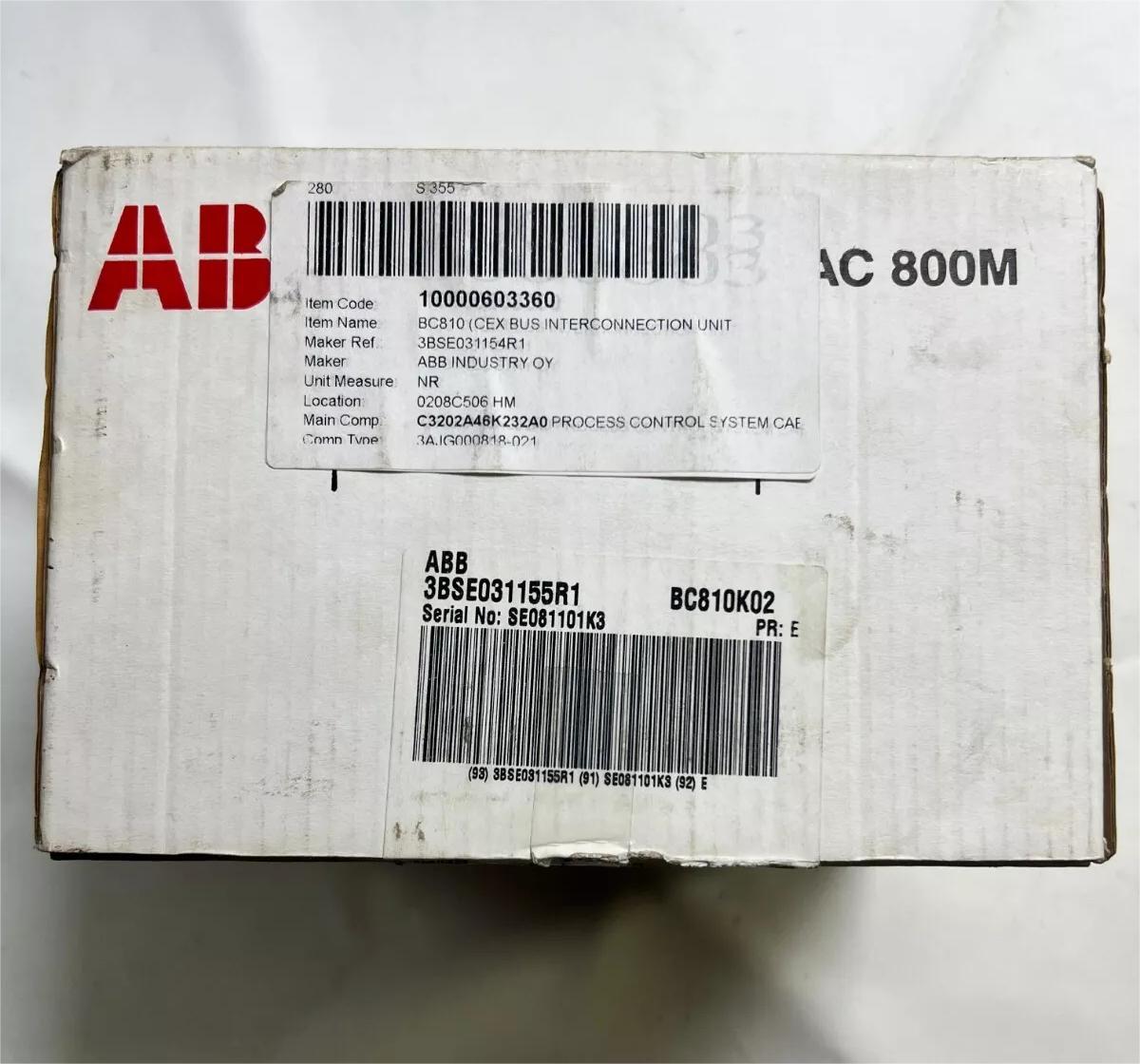

ABB BC810K02 3BSE031155R1 CEX-bus Interconnection Unit

ABB BC810K02 3BSE031155R1 CEX-bus Interconnection Unit

BC810K02 CEX-bus Interconnection Unit is available in stock and ready for ship. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.

  • Brand :

    ABB
  • Part number :

    BC810K02 3BSE031155R1
  • Description :

    CEX-bus Interconnection Unit
  • Origin :

    Sweden
  • Condition :

    New
  • Dimension :

    59 mm x 185 mm x 127.5 mm
  • Weight :

    1.5 kg
  • Payment :

    Bank Transfer
Contact Us:



BC810K02

Compact Product Suite hardware selector




The BC810 unit consists of two basic parts: baseplate (TP857) and power supply/logic board. The baseplate is where the connectors to CEX-Bus and the external power reside. It is grounded to the DIN-rail through metal parts of the housing. The board also carries the external power voting diode and fuse. The power supply and logic board contain the +3.3 V converter, logic, drivers for CEX-Bus interconnection, and the connector for the interconnection cable.

The BC810 can be used with PM857, PM861A, PM862, PM863, PM864A, PM865, PM866, PM866A, PM867 and PM891.

In a fully redundant system with two interlinked BC810 and primary/backup CPU pair, the BC810 support online replacement of the CPU baseplate without disturbing the CEX traffic. If the BC810 has to be replaced, all traffic to the connected CEX segment is stopped.

The CEX-Bus is used for extending the onboard communication ports with communication interface units. It is also possible to use redundant communication interfaces on the CEX-Bus. The CEX-Bus Interconnection unit BC810 is used to increase the availability of the CEX-Bus by dividing it into separate segments. This improves the availability of systems with redundant communication interfaces.




Features and benefits:


• Supports redundant communication interface units.


• Supports on-line replacement of the CPU.


• External power supply.


• Supports hot swap




More info:

The BC810K02 kit includes:

- BC810, Interconnection Unit, 2 units

- TP857, Baseplate, width = 60 mm, 2 units

- TK851, Interconnection Cable, Length 1.0 m

- TB850, CEX-Bus Terminator, 2 units



Technical Specifications
Manufacturer ABB
Part Number BC810K02
Ordering Information 3BSE031155R1
Product Catalog AC 800M
Description CEX-bus Interconnection Unit
Voltage 24 Vdc
Current 70 mA
Dimensions 59 mm x 185 mm x 127.5 mm
Weight 1.5 kg



ABB BC810K01

100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
