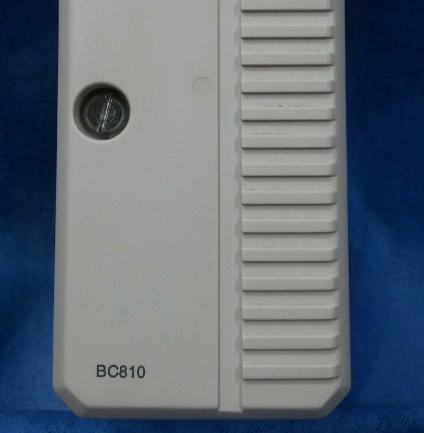

ABB BC810K01 3BSE031154R1 CEX-bus Interconnection Unit

ABB BC810K01 3BSE031154R1 CEX-bus Interconnection Unit

The BC810 units must be mounted directly to the CEX-Bus on the processor unit base plate. The SM810, if used, and communication interfaces are then mounted to the CEX-Bus on the BC810, and terminated in each end with TB850 male CEX-Bus termination unit. The two BC810 are connected with the interconnection cable TK851.

The maximum number of CEX-Bus units connected to a BC810 is six. The primary function of BC810 is to divide the CEX-Bus into two physically separate segments for increased system availability, a faulty CEX-Bus unit on one segment will not affect the processor unit or the other CEX-Bus segment. It is also important to note that when using the BC810 together with redundant CEX-Bus units these units shall be mounted on different BC810 CEX-Bus segments. connects to the controller through of the PROFIBUS-DPV1 fieldbus.

The BC810 is powered either from the processor unit via the CEX-Bus or through its external connector for power supply. This external connector can also support the CEX-Bus with redundant power.

If the external connector is used in a redundant configuration of BC810, there are two valid connection possibilities:

• Single power source (SD8xx or SS8xx) for the processor units and the BC810s on both the segments (say, segments A and B).

• One power source (SD8xx or SS8xx) for the processor unit on segment A and the BC810 on segment B, and another power source (SD8xx or SS8xx) for the processor unit on segment B and the BC810 on segment A.



More info









BC810K01 CEX-bus Interconnection Unit Kit Including:





- BC810, Interconnection Unit





- TP857, Baseplate, width = 60 mm





- TB850, CEX-Bus Terminator



Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
