ABB 216GE61 HESG112801R1 Input Relay Module

ABB 216GE61 HESG112801R1 Input Relay Module

The 216GE61 is a input auxiliary relay assembly, it has up to 16 auxiliary relays can be accommodated, providing complete potential separation of digital input signals. Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.

  • Brand :

    ABB
  • Part number :

    216GE61 HESG112801R1
  • Description :

    Input Relay Module
  • Origin :

    Switzerland
  • Condition :

    New
  • Dimension :

    18 cm x 6 cm x 3 cm
  • Weight :

    0.5 kg
  • Payment :

    Bank Transfer
Contact Us:

216GE61 HESG112801R1 Input Relay Module



The 216GE61 is a input auxiliary relay assembly, it has up to 16 auxiliary relays can be accommodated, providing complete potential separation of digital input signals.



The 216GE61 has 16 auxiliary relays K1...K16 with potentially free contacts, for example, for incoming external:



· logic signals

· blocking signals

· tripping signals from other devices for distribution to the HV circuit-breakers by the RE. 216's matrix tripping logic.

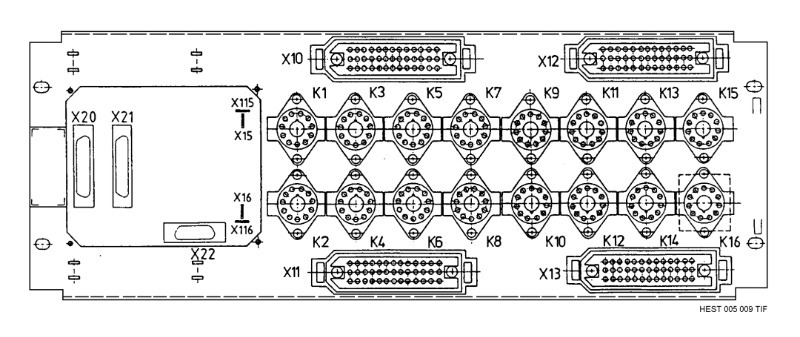

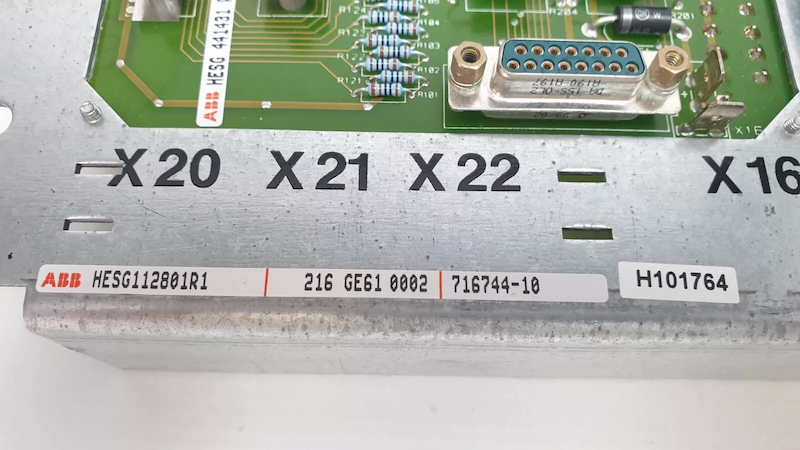

ABB 216GE61



K1...K16 : auxiliary relays for external input signals rated coil voltage = external aux. supply

X20, X21 : standard cables for control of 216DB61 by K1...K16

X15, X115 : UP auxiliary supply connections (24 V DC) X16, X116

X10...X13 : cable connectors for the wiring to the external auxiliary supply and terminals

X22 : standard cables for controlling 216GA62



The auxiliary relays K1...K16 are energised by the external auxiliary supply. The signals are then relayed to the binary I/P and tripping unit 216DB61 or 216EB61 by contacts, which are isolated from the coil circuits and obtain their auxiliary supply from the auxiliary d.c. voltage UP. Fig. 2.14 shows the basic circuit of the 216GE61 unit.



ABB 216GE61 HESG112801R1

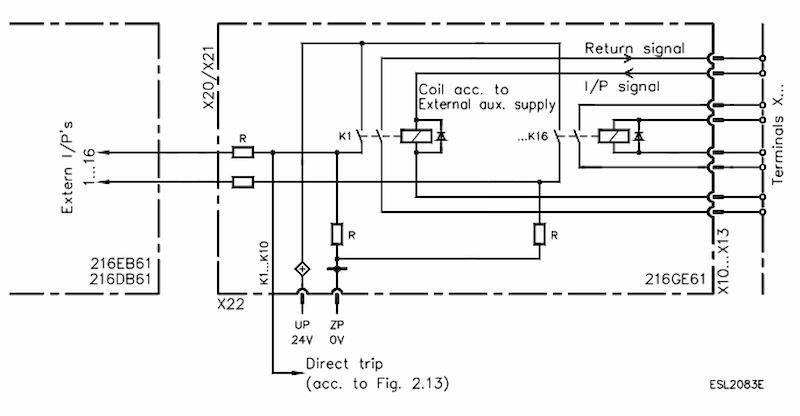

Fig. 2.14 Basic control circuit for the external signal I/P relays K1...K16 ,

K1...K16 : auxiliary I/P relays; rated coil voltage = external auxiliary supply



The auxiliary relay channels K1...K10 are also connected to the matrix tripping logic to enable them to directly energise tripping relays.



A second contact on each of the relays K1...K16 is wired to terminals to remotely signal that the corresponding channel is energised.



ABB 216GE61

Technical Specifications

Manufacturer ABB
Part Number 216GE61
Ordering Information HESG112801R1
Product Catalog REG 216 System
Description Input Relay Module
Voltage 24 Vdc
Current 1 A
Dimensions 18 cm x 6 cm x 3 cm
Weight 0.5 kg
