ABB 216GA62 HESG112799R1 Tripping Relay Module

216GA62 HESG112799R1 Tripping Relay Module

The 216GA62 is a tripping auxiliary relay assembly, it has up to eight powerful, potential-free tripping contacts and circuits, which provide high speed operation (surge circuit) with reduced consumption after operation (economy circuit) are provided.

Facilities for different trip circuit supervision arrangements in conjunction with the output unit 216DB61 and the input auxiliary relay assembly 216GE61 are also provided.

The tripping auxiliary relay assembly can be optionally fitted with a tripping logic diode matrix to enable direct coupling of external signals. REG216 can also read and process external signals via digital inputs.

The auxiliary tripping relays K1...K8 are controlled by the 216DB61 binary I/P and tripping unit. Fig. 2.13 shows the basic control circuit for the tripping relays.

Fig. 2.13 Basic control circuit for the auxiliary tripping relays K1...K8

K1...K8 : tripping relays; rated coil voltage 12 V DC

1) : wiring of the tripping contacts according to Table 12.3

2) : surge circuit for accelerating K1...K8

Mx : diode matrix tripping logic for direct tripping (O/P's A09, A10 not used)

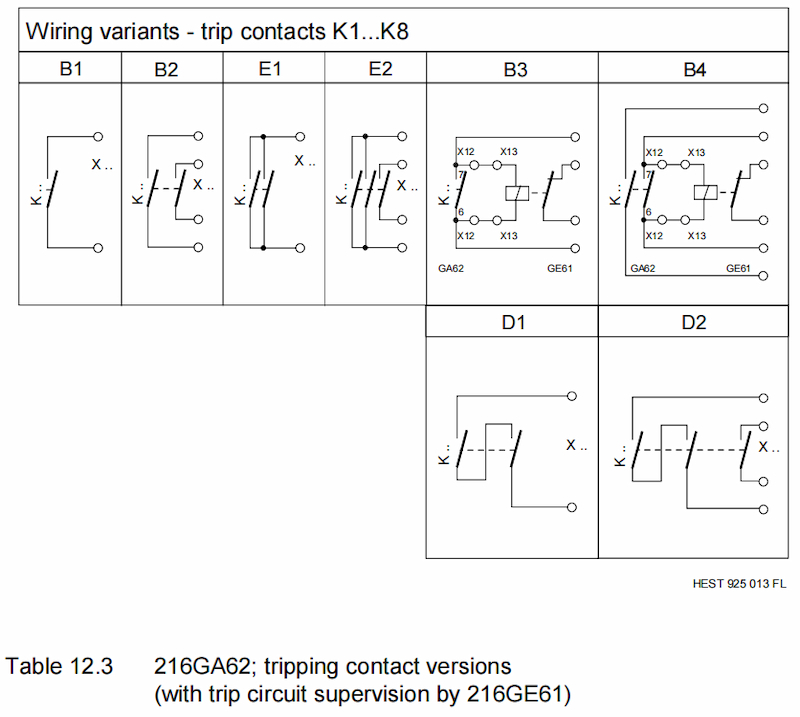

How the tripping relay contacts are wired varies from plant to plant. The different ways of wiring the contacts of the relays K1...K8 can be seen from Table 12.3.

The relationship between the tripping relays and the numbering of the tripping channels is:

1st. 216GA62 unit, K1...K8 correspond to CHO01...CHO08

2nd. 216GA62 unit, K1...K8 correspond to CHO09...CHO16

3rd. 216GA62 unit, K1...K8 correspond to CHO17...CHO24

4th. 216GA62 unit, K1...K8 correspond to CHO25...CHO32

Technical Specifications
