ICS Triplex T9432 Analogue Input Module

ICS Triplex T9432 Analogue Input Module

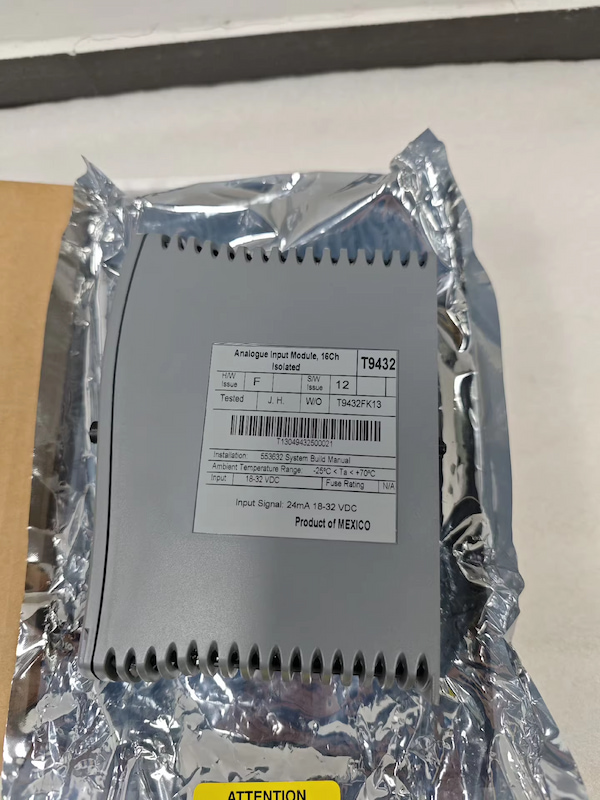

The T9432 analogue input module monitors sixteen isolated analogue input channels and measures input current in the range 0 mA to 24 mA. Each channel provides digital state and analogue data to the processor for process monitoring, line monitoring and field fault detection.

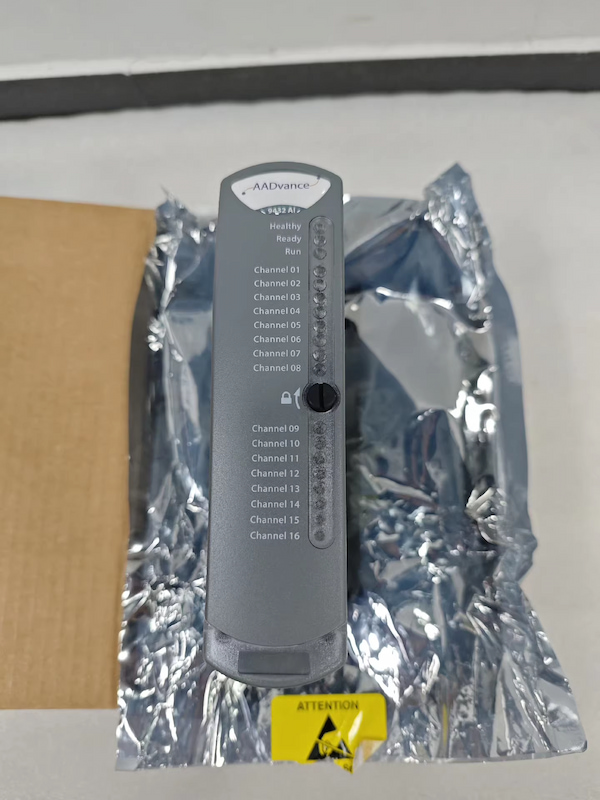

The input module provides local module and channel status indications through its front panel LEDs, the same indications can be connected to application variables and viewed at the Workbench. Comprehensive diagnostics at both system and module levels provide clear indications which help rapid maintenance and repair.

The module incorporates signal and power isolation circuits, which separate each input channel from the rest of the system, protecting the controller from field faults. An independent watchdog arrangement monitors the module operation and provides additional fault containment by a shutdown mechanism should a fault occur.

These modules mate with the T9831/2/3 Analogue Input termination assemblies. When analogue modules are installed in a dual or TMR configuration they provide fault tolerant input functionality. Hence, plant maintenance personnel can replace input modules without interrupting the input data flow to the processor modules.

Analogue Input Line Monitoring

Each analogue input module is set up through the AADvance Workbench. Monitoring levels for each analogue input channel are configurable at the module and the channel level. The default parameters are:

· Fault: 0 to 3.8 mA

· Normal: 3.8 to 22.0 mA

· Fault: > 22.0 mA

Each input has five configurable voltage bands (there are eight distinct switching thresholds to allow hysteresis), each of which can be adjusted to provide line monitoring and field device diagnostics.

Technical Specifications
