A6370D Overspeed Protection Monitor
· 1 Channel Overspeed Protection Card
· Display
· Configurable (USB)
Brand :
EmersonPart number :
A6370DDescription :
Overspeed Protection MonitorOrigin :
GermanyCondition :
NewDimension :
128 mm x 71 mm x 160 mmWeight :
250 gPayment :
Bank Transfer

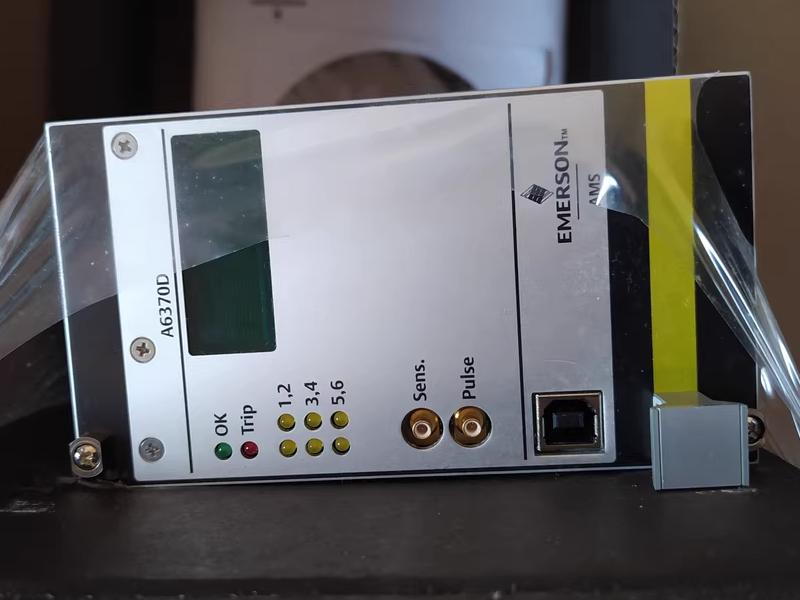

Emerson A6370D Overspeed Protection Monitor
The A6370 Monitor is part of the AMS 6300 SIS Overspeed protection system and is mounted in a 19" rack (84HP width and 3RU height) in combination with the A6371 system backplane. One AMS 6300 SIS consists of three Protection monitors (A6370) and one backplane (A6371).
The system is designed for use with Eddy-Current sensors, Hall- Element sensors and Magnetic (VR) Sensors.
Emerson's AMS 6300 SIS Digital Overspeed Protection System is TUV-certified for SIL 3 and complies with the latest versions of industry safety standards IEC 61508:2010 and European Machine Directive 2006/42/EG.The entire system also meets the API 670 standard for machinery protection systems. The AMS 6300 SIS implemented the stricter development regulations during production to actively ensure compliance.
In addition, the AMS 6300 SIS rotational direction detection functionality is certified for SIL 2 and the speed sensors also comply with SIL 2 requirements and are capable for SIL 3 in a 2003 configuration.
Features
· API 670 compliant overspeed protection system
· SIL certification according to latest relevant standards
· SIL 3 capable overspeed protection
· SIL 2 rotational direction detection function
· Integrated Proof-Test function
· 42-Month warranty
· Airborne contaminants resistance class G3 according to ISA-S71.04
Technical Specifications
Manufacturer | Emerson |
Part Number | A6370D |
Ordering Information | A6370D |
Product Catalog | AMS 6300 SIS Overspeed protection system |
Description | Overspeed Protection Monitor |
Voltage | 24 Vdc |
Current | 15 mA |
Dimensions | 128 mm x 71 mm x 160 mm |
Weight | 250 g |
