Brand :
ABBPart number :

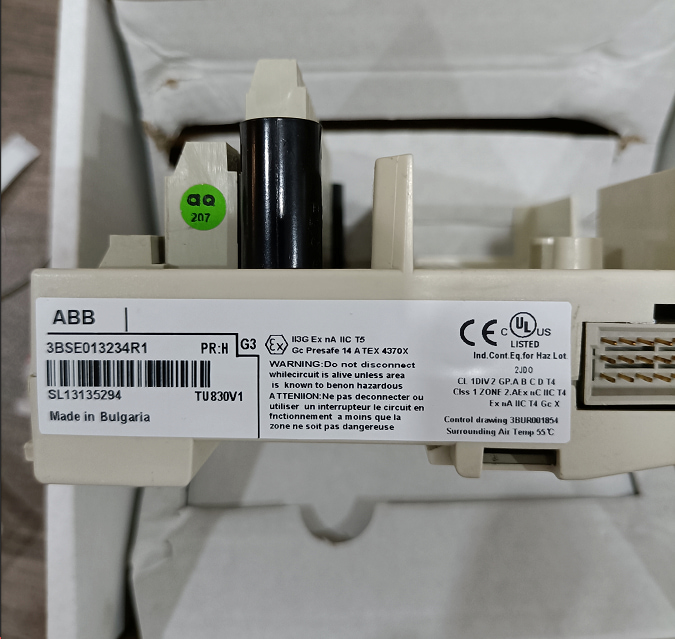

TU830V1 3BSE013234R1Description :
Extended Module Termination UnitOrigin :
SwedenCondition :
NewDimension :
126 mm×64 mm×110 mmWeight :
0.28 kgPayment :
T/T
ABB Ability™ System 800xA® hardware selector
The TU830V1 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module end to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Features and benefits
· Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.
· Up to 16 channels of field signals and process power connections.
· Connections to ModuleBus and I/O modules.
· Mechanical keying prevents insertion of the wrong I/O module.
· Latching device to DIN rail for grounding.
· DIN rail mounting.
Technical Specifications
| Article number | 3BSE013234R1 |
| Type | Extended |
| Connection | Terminal block |
| Number of channels | 16 |
| Voltage | 50 V |
| Mounting | Both directions |
| Mounting detail | 55 ºC (131 °F) |
| Use with I/O |
AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840 |
| Process connections | 56 |
| Single/redundant | I/O Single |
