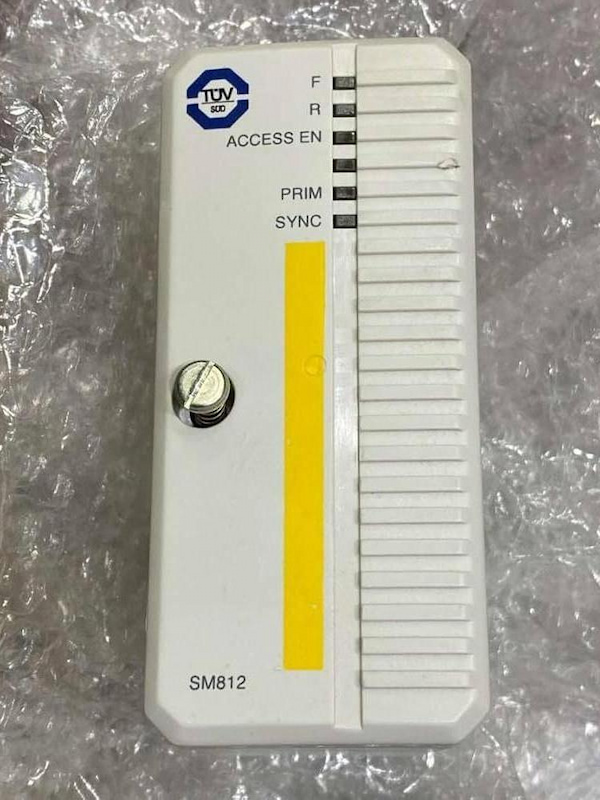

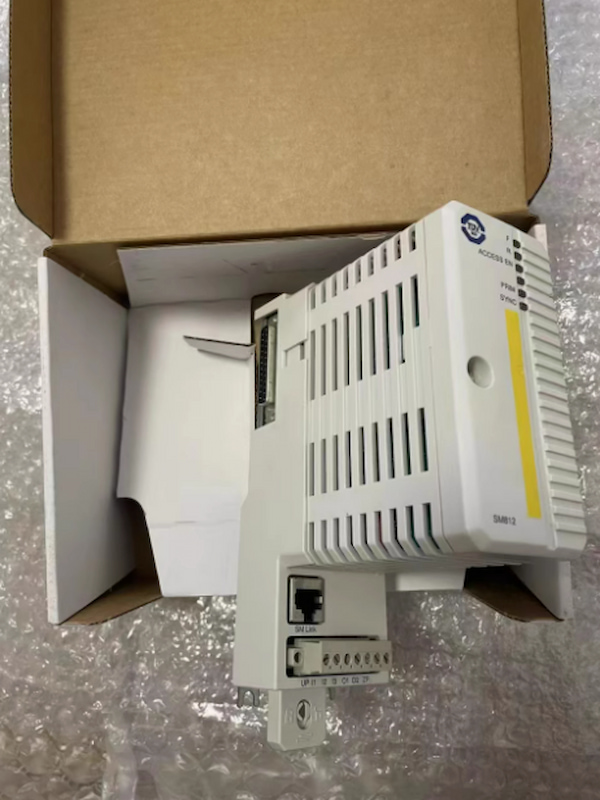

ABB SM812K01 3BSE072270R1 Safety CPU Module

ABB SM812K01 3BSE072270R1 Safety CPU Module

Functional Description

SM812K01 Safety CPU Module Kit

Collaborating safety CPU. Connects to CEX bus after BC810CEX bus interconnection box. Including:

- SM812, Safety Module

- TP868, Baseplate, width = 60 mm

- TK852V10, Synchronization link cable

The SM812 contains two pc-boards. The main board contains the MPC866, SDRAM, Flash PROM, and

CEX-Bus slave interface. A daughter board contains digital I/O, +3.3V supply with over-voltage protection

and voltage monitoring. The termination plate contains CEX-Bus connectors and connectors for the digital

I/O.

The High Integrity controller is able to run SIL3 applications using SM812. Performing a Hot swap or

inserting an additional/replacement SM812 into a running system affects SIL3 applications.

Key Features

• MPC866 Microprocessor running at 133 MHz.

• 64 MB RAM

• Provides supervision of the PM867 controller during SIL1-2 operations and together with the PM867 forms

a 1oo2 diverse architecture for SIL3 applications.

• Over voltage protection.

• Internal voltage monitoring.

• Supports hot swap.

• Supports redundancy.

• SM Link for synchronization of redundant pair.
