The SM810K01 CPU module consists of two parts: Termination Plate (TP855) and SM810.
Brand :
ABBPart number :
SM810K01 3BSE030928R1Description :
Safety CPU ModuleOrigin :
SwedenCondition :
NewDimension :
185 mm x 127.5 mm x 59 mmWeight :
700 gPayment :
Bank Transfer

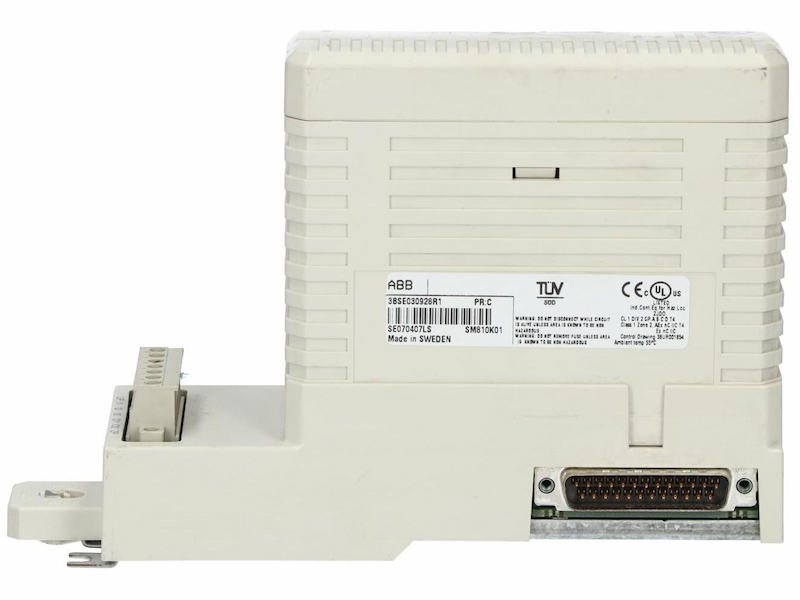

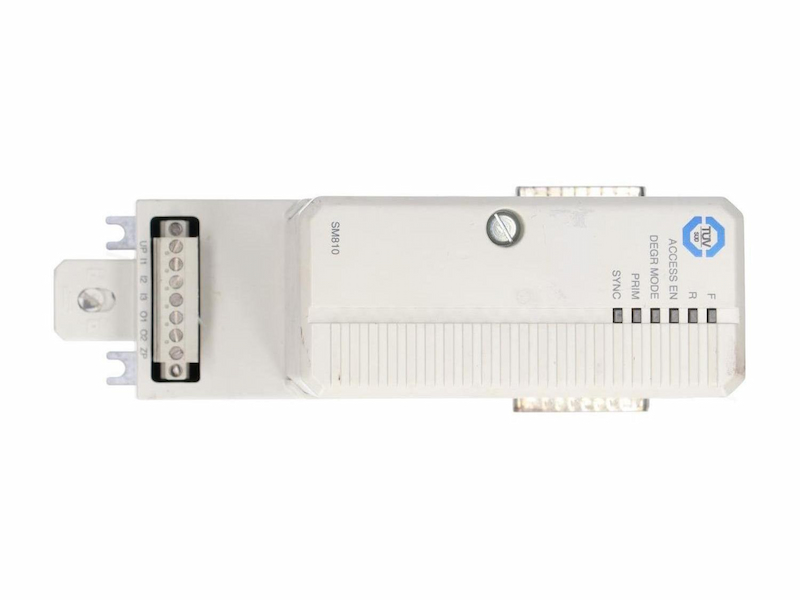

ABB SM810K01 3BSE030928R1 Safety CPU Module
Functional Description
SM810K01 Safety CPU Module Kit
Collaborating safety CPU. Connects to CEX bus after BC810 CEX bus interconnection box. Including:
- SM810, Safety Module
- TP855, Baseplate, width = 60 mm
The SM810 contains two pc-boards. The main board contains the MPC862, SDRAM, Flash PROM, and
CEX-Bus slave interface. A daughter board contains digital I/O, +3.3V supply with over-voltage protection
and voltage monitoring. The termination plate contains CEX-Bus connectors and connectors for the digital
I/O.
Key Features
• MPC862P Microprocessor running at 96 MHz.
• 32 MB RAM
• Provides supervision of the PM865 controller during SIL1-2 operations.
• Over voltage protection.
• Internal voltage monitoring.
• Supports hot swap.
• Supports redundancy
Technical Specifications
| Manufacturer | ABB |
| Part Number | SM810K01 |
| Ordering Information | 3BSE030928R1 |
| Product Catalog | Advant 800xA |
| Description | Safety CPU Module |
| Voltage | 24 Vdc |
| Current | 250 mA |
| Dimensions | 185 mm x 127.5 mm x 59 mm |
| Weight | 700 g |
