ABB PM867K01 3BSE076355R1 Processor Unit

PM867K01 3BSE076355R1 Processor Unit

The PM867K01 is a processor unit, manufactured and designed by ABB as part of controller used in AC 800M control system. The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM867 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. The AC 800M HighIntegrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity.

The PM867K01 3BSE076355R1 processor unit only compatible for 800xA 6.0.2 and onwards.

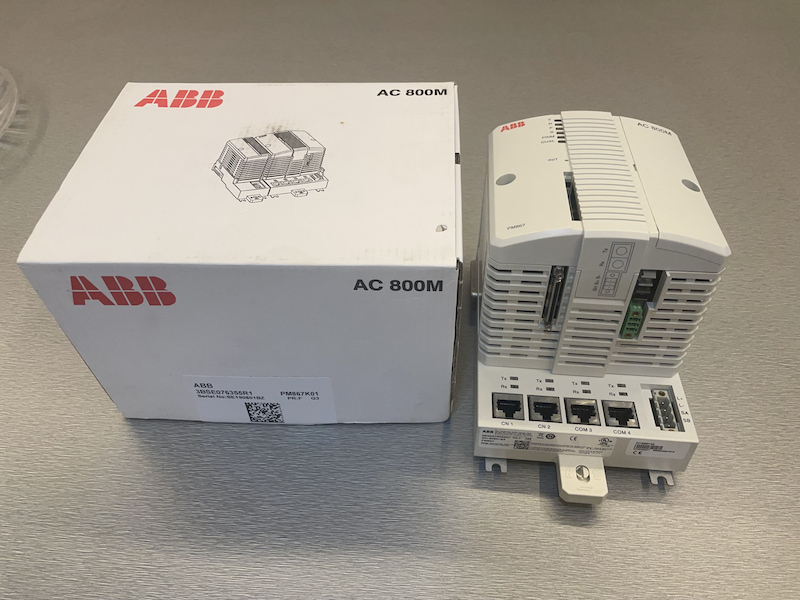

Package including:

• PM867, CPU

• TP830, Baseplate, width = 115mm

• TB850, CEX-bus terminator

• TB807, ModuleBus terminator

• TB852, RCU-Link terminator

• Battery for memory backup (4943013-6)

• No license included

Features and benefits

• ISA Secure certified

• AC 800M High up to SIL 3 certified using PM865/SM811 or PM867/SM812

• Supports S800 I/O High Integrity (PM865, PM866A, PM867 and PM891)

• The controller can be configured with 800xA control builder

• The controller has full EMC certification

• TÜV Certified SIL 2 and SIL 3

• Built-in redundant Ethernet Communication ports

PM867K01 Technical Specifications
