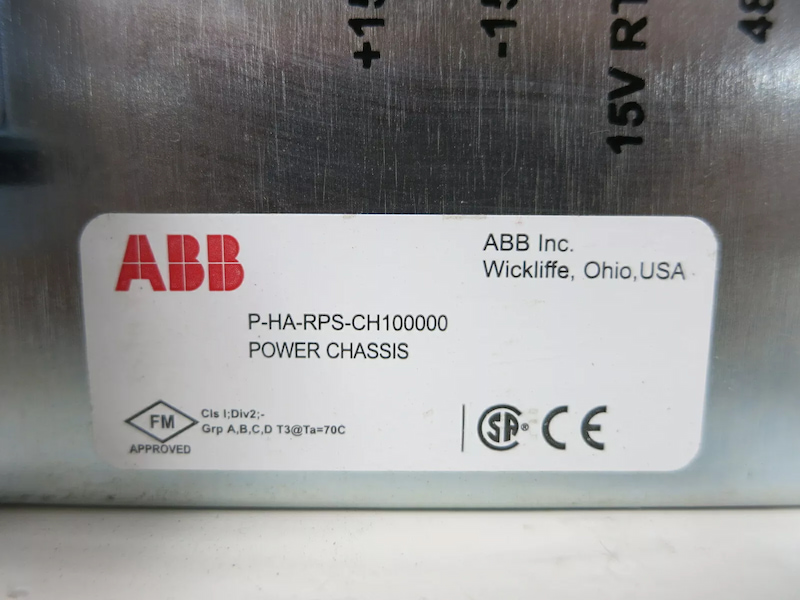

ABB PHARPSCH100000 Power Supply Chassis

ABB PHARPSCH100000 Power Supply Chassis

The PHARPSCH100000 is a MPS III Power Supply Chassis, it supplies 5 VDC, +15 VDC, -15 VDC, 24 VDC, 48 VDC, and 125 VDC power to Harmony rack components of the Symphony Enterprise Management and Control System.

The 5, +15 and -15 VDC lines shown entering the system power bus bar are the operating voltages for rack I/O devices. The 24VDC (25.5 VDC actual voltage) line shown entering the system power bus bar is I/O power for field devices. Additionally, the power system can provide various combinations of 24, 48, and 125 VDC field power.

The major MPS III components consist of a power entry panel, power chassis, power trays, system fan, and bus monitor.

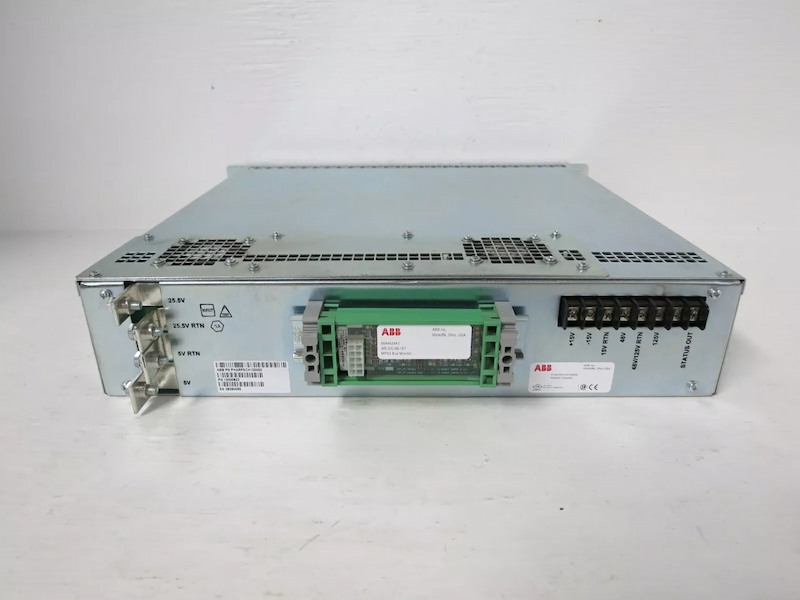

The power supply chassis is designed for standard 19-inch rack mounting and is the basic structure for mounting one or two power supply trays. It has two slots for the power supply trays and provides a mounting structure for the power terminations, DC bus monitor, and status output connections.

Features:

Modular Design: The PHARPSCH100000 features a modular design that allows for easy customization and expansion. Users can add or remove power modules based on their specific needs.

Wide Input Voltage Range: This chassis accepts a wide range of input voltages, making it suitable for use in various global power grids.

Reliable Power Delivery: The PHARPSCH100000 ensures consistent and reliable power delivery to critical industrial equipment.

Compact Footprint: Despite its robust design, the chassis maintains a compact footprint, saving valuable cabinet space.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
