The ABB PFEA111-65 3BSE050090R65 is a Tension Electronics module used in industrial control systems, particularly those manufactured by ABB. 100% insured shipping: A guarantee for your purchases ; please contact us.
Brand :
ABBPart number :
PFEA111-65 3BSE050090R65Description :
Tension ElectronicsOrigin :
SwedenCondition :
NewDimension :
180 mm x 120 mm x 100 mmWeight :
1.9 kgPayment :
Bank Transfer

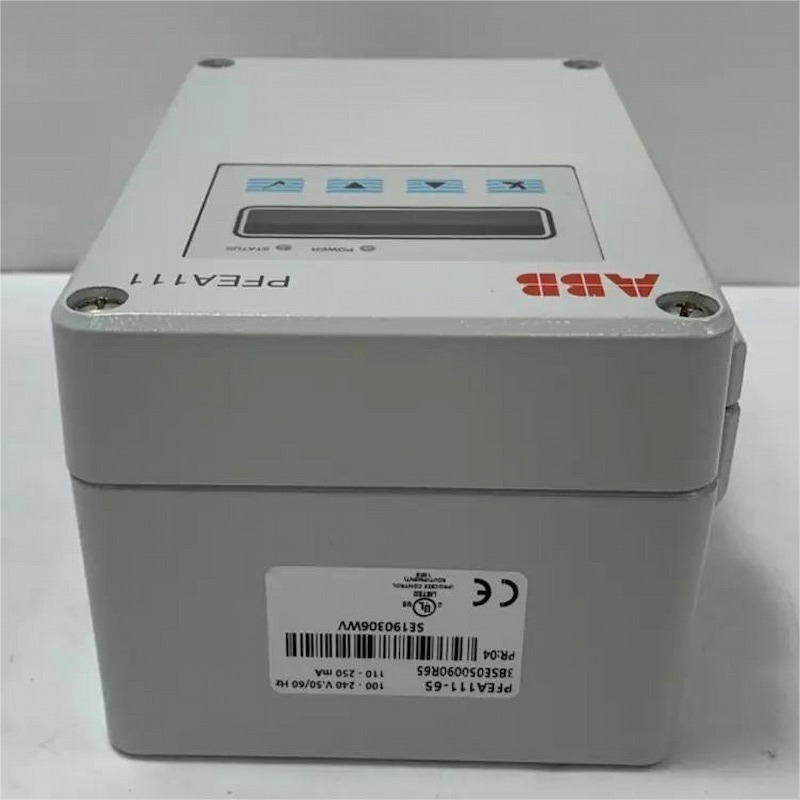

PFEA111-65 3BSE050090R65 Tension Electronics
PFEA111-65 is a cost effective compact and user friendly tension electronics providing an accurate and reliable fast analog SUM signal from two load cells for control and/or monitoring. The display can show the SUM, individual A &B and difference signal. The small size and DIN-rail mount make this unit very easy to integrate into many types of electrical cabinets.
Covering a wide range of applications the Tension Electronics comes in three versions with different levels of performance and functionality. All three versions have multi-language digital display and configuration keys. The configuration keys being used for setting different parameters and to check the status of the tension system. The 2 x16 character display can present sum, difference or individual load cell signals. All three versions are available in both DIN-rail version (IP 20-version, unsealed) and enclosed IP 65-version (NEMA 4) for mounting in more severe environments.
• Load cells of type PFCL 201, PFCL 301E, PFTL 101, PFTL 201, PFTL 301E and PFRL 101
The equipment is intended for use in a wide range of manufacturing processes where a web of any kind of material, e.g. paper, plastic or textile, is transported in a machine. The only requirement is that the web is wrapped over a roll. The force on the roll is proportional to the web tension. The resulting force is transferred through the bearing housings into the load cells. The load cells create a signal that is proportional to the force acting in the measuring direction of the load cells. This signal is processed and amplified in the tension electronics and can be used as an input signal for process control, presentation on a display or for registration.
Technical Specifications
Manufacturer | ABB |
Part Number | PFEA111-65 |
Ordering Information | 3BSE050090R65 |
Product Catalog | Web Tension Measurement |
Description | Tension Electronics |
Voltage | 100-240 V |
Current | 110-250 mA |
Dimensions | 180 mm x 120 mm x 100 mm |
Weight | 1.9 kg |
