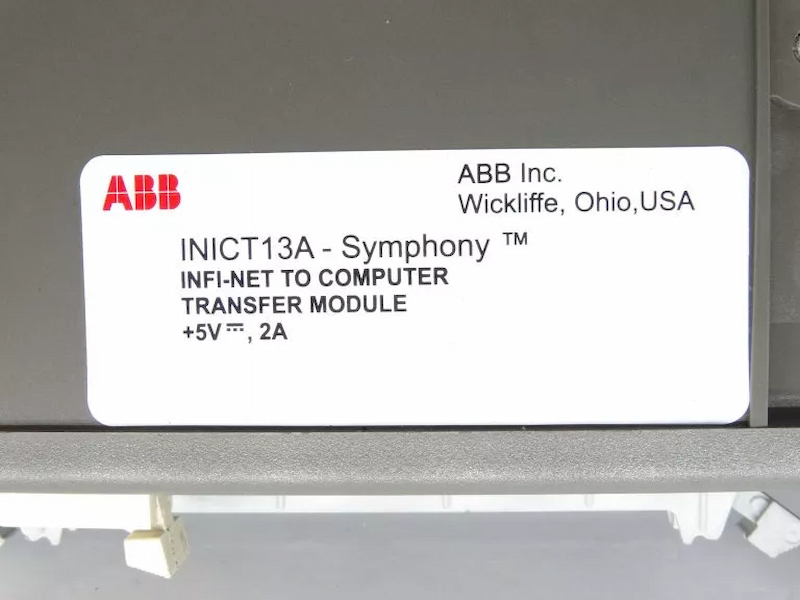

ABB INICT13A Infi-Net to Computer Transfer Module

INICT13A Infi-Net to Computer Transfer Module

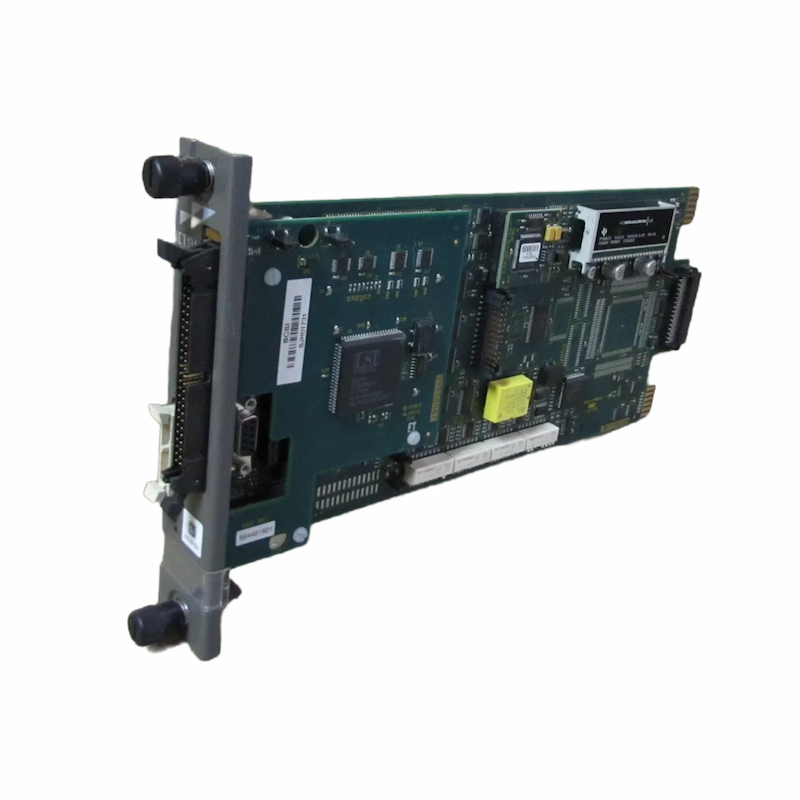

The INICT13A INFI-NET to Computer Transfer Module (ICT) provides the electronics needed to direct the operation of the INICT13A INFI-NET to Computer Interface. It handles all communication with the host computer through the IMMPI01 Multi-Function Processor Interface Module (MPI) SCSI or RS-232-C communication ports. When communicating through the RS-232-C serial port, the MPI module can act as data communication equipment (DCE) or data terminal equipment (DTE). The jumper configuration on the termination unit (NTMP01) or termination module (NIMP01 or NIMP02) determines if this interface operates as DTE or DCE. It also communicates directly with the NIS module over the I/O expander bus.

The ICT module has enough memory that it can store up to 30,000 point definitions (depending on point types). ICT module firmware enables the host computer to issue commands for data acquisition, process monitoring and control, and system functions (security, time and configuration control). The ICT module maintains the point table and interprets commands coming from the host computer. Thus, it directs all interaction between the host computer and the INFI-NET system.

The ICT module receives data from INFI 90 modules and then sorts, organizes and stores the data in a database. The NIS module receives frames from the INFI-NET system and passes them on to the ICT module for processing. The ICT module then sorts this incoming data, storing exception reports and incoming requests until the host computer is ready for the data. This buffering action allows the host computer to operate completely asynchronously to the INFI-NET loop. When the host computer is ready to process more data, it issues a command to the ICT module that forwards the data as a reply.

The MPI module provides the ICT module with serial ports and a SCSI interface. It contains SCSI and RS-232-C I/O ports.

Technical Specifications
