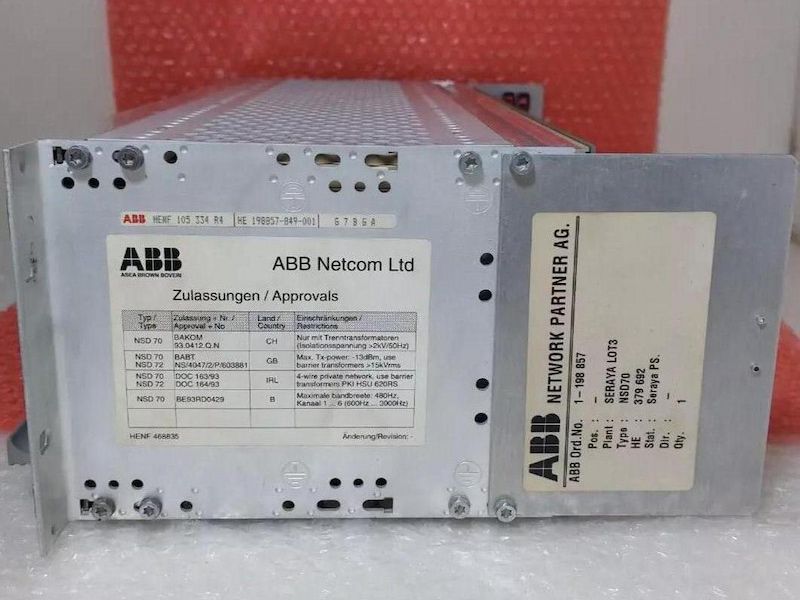

ABB G7BGA HENF105334R0010 Equipment Rack

G7BGA HENF105334R0010 Equipment Rack

The G7BGA is a equipment rack, the rack assemblies are 19" wide and 3U high, corresponding to 133.4 mm, and have a depth of 245 mm including the depth of the side plates. Provision is made for fiting an optionally available plate with a strip along the lower edge of the rack for labeling the units, which increases the overall height of the rack by one ASA division(1 ASA division=1U= 44.5 mm). Also available are a cable duct and a screening cover for the backplate.

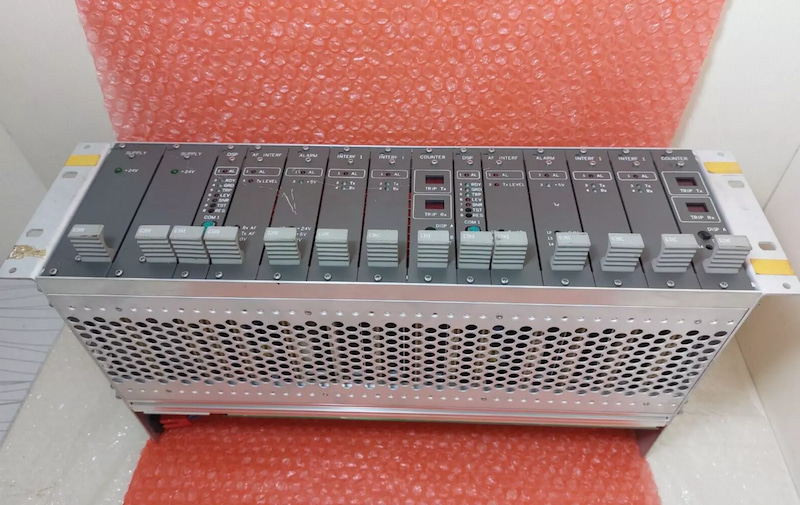

The rack G7BGa is fitted with a wiring PCB type G1CY and is able to accommodate two independent NSD 70D units or a single NSD 70D unit with up to 6 commands. When two NSD 70D's are used in a T-station, the corresponding signals are linked by jumper plugs on the backplate PCB.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
