ABB DSDP150 57160001-GF Pulse Counter Board

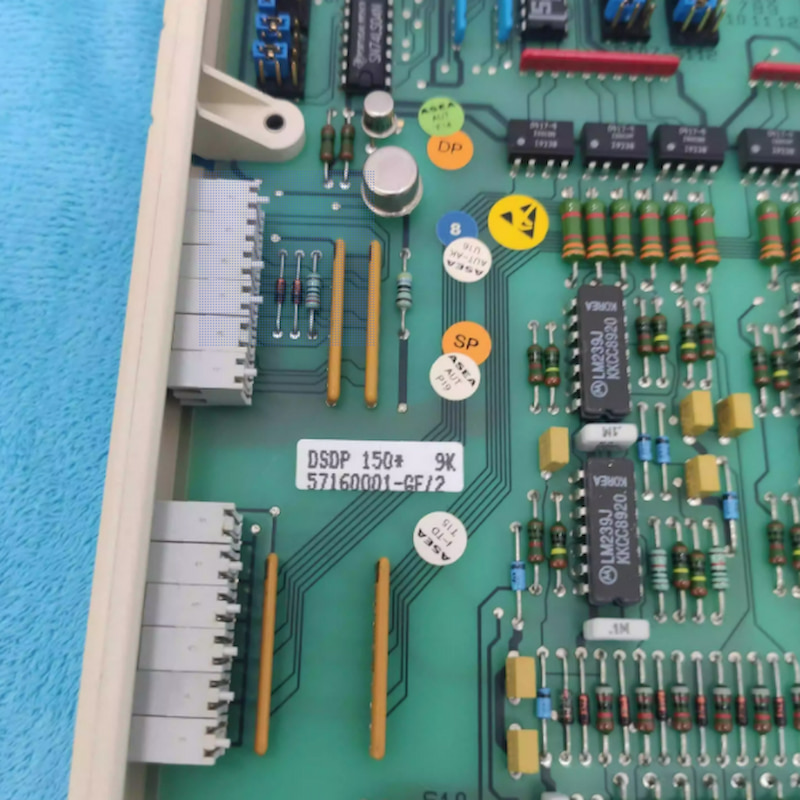

DSDP150 57160001-GF Pulse Counter Board

DSDP 150 is a pulse counter board for fast pulse counting and frequency measurement based on pulse trains up to 10 kHz. Use the board DSDP 150 to connect pulse signals with a nominal amplitude of 5/12 or 24 V. The board contains 12 inputs in two groups, galvanically isolated with opto-couplers.

You can select four function modes with the jumpers on DSDP 150 and the controller software:

· Pulse counting

· Frequency measurement 1. Period time measuring: One period is measured and the resolution is ≤ 0,2% at F ≤ 1000 Hz.

· Frequency measurement 2. This type of measuring requires two channels per measurement object. F ≤ 10 kHz.

· Pulse relation measurement.

Below shows the signal processing on DSDP 150.
