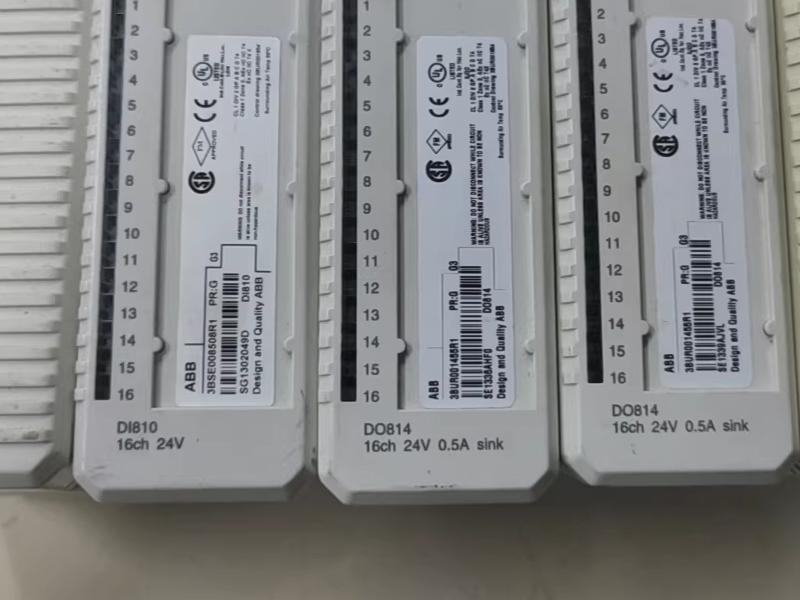

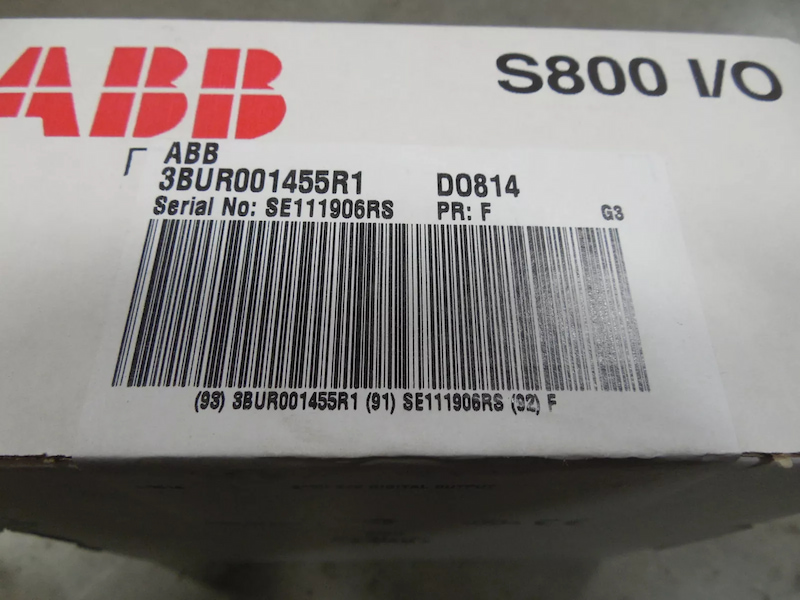

ABB DO814 3BUR001455R1 Digital Output Module

ABB DO814 3BUR001455R1 Digital Output Module

The DO814 is a 16 channel 24 V digital output module with current sinking for the S800 I/O. Please Contact Us For Availability Now - 10% Off Your First Order!

  • Brand :

    ABB
  • Part number :

    DO814 3BUR001455R1
  • Description :

    Digital Output Module
  • Origin :

    Sweden
  • Condition :

    New
  • Dimension :

    45 mm x 111 mm x 119 mm
  • Weight :

    0.18 kg
  • Payment :

    Bank Transfer
Contact Us:



DO814 3BUR001455R1 Digital Output Module





The DO814 3BUR001455R1 is a 16 channel 24 V digital output module with current sinking for the S800 I/O.The output voltage range is 10 to 30 volt and the maximum continuous current sinking is 0.5 A. The outputs are protected against short circuits and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group.



Each output channel consists of a short circuit and over temperature protected low side switch, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.



The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.



Features and benefits



· 16 channels for 24 V d.c. current sinking outputs

· 2 isolated groups of 8 channels with process voltage supervision

· Output status indicators

· OSP sets outputs to predetermined state upon error detection

· Short-circuit protection to ground and 30 V

· Over-voltage and over-temperature protection



Technical Specifications

Manufacturer ABB
Part Number DO814
Ordering Information 3BUR001455R1
Product Catalog S800 I/O
Description Digital Output Module
Voltage 24 Vdc
Current 0.5 A
Dimensions 45 mm x 111 mm x 119 mm
Weight 0.18 kg



DO814



3BUR001455R1



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
