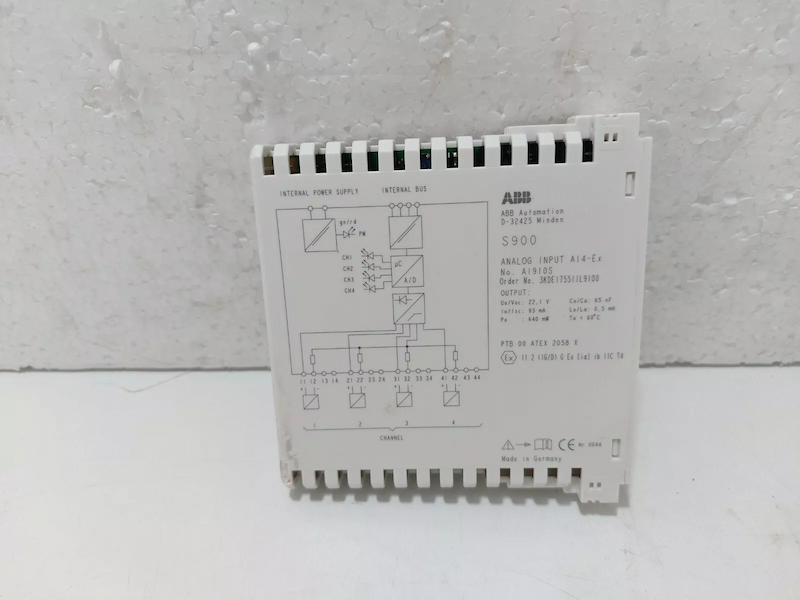

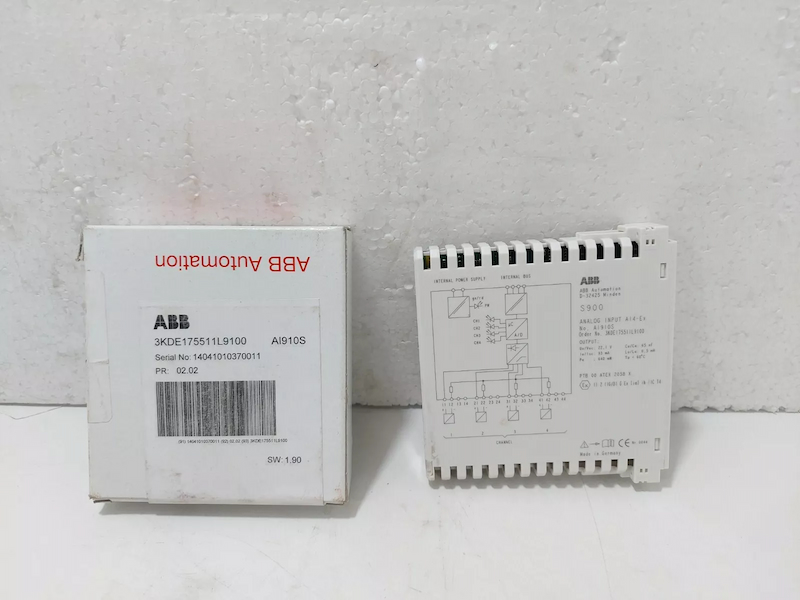

ABB AI910S 3KDE175511L9100 Analog Input Module

ABB AI910S 3KDE175511L9100 Analog Input Module

Functional Description

The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2

hazardous area depending on the selected system variant. S900 I/O communicates with the control system

level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the

costs for marshalling and wiring are reduced.

The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow

replacement during operation, meaning that there is no need to interrupt the primary voltage in order to

exchange the power supply units.

S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices

installed in Zone 2, Zone 1 or Zone 0.

AI910S Analog Input (AI4-Ex), input and power supply for 4...20 mA loop powered 2-wire transmitters.

Features

· ATEX Certification for installation in Zone 1

· Redundancy (Power and Communication)

· Hot Configuration in Run

· Hot Swap functionality

· Extended Diagnostic

· Excellent configuration and diagnostics via FDT/DTM

· G3 – coating for all components

· Simplified maintenance with auto-diagnostics

· Power supply for 4...20 mA loop powered 2-wire transmitters

· Short and break detection

· Electrical isolation between input / bus and input / power

· Common return for all inputs

· 4 channels
