To avail our best deals for 3BSE008516R1, contact us and we will get back to you within 24 hours. AI810 Analog Input Module Product ID: 3BSE008516R1 ABB Type Designation: AI810 Catalog Description: AI810 Analog Input 8 channels Long.
Brand :
ABBPart number :
AI810Description :
8 channels Analog Input ModuleOrigin :
SwedenCondition :
NewDimension :
102 mm×119 mm×45 mmWeight :
0.2 kgPayment :
T/T

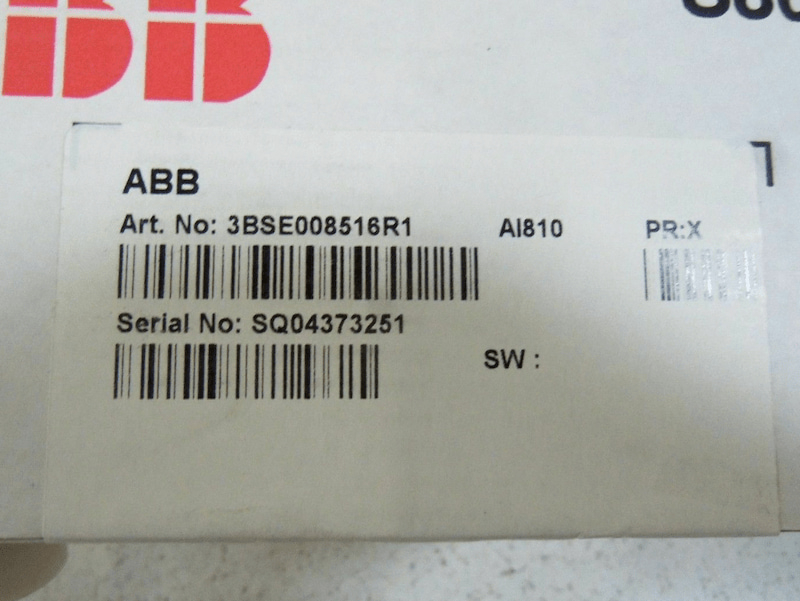

ABB AI810 3BSE008516R1 Analog Input Module 8 channels
The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.
The voltage input is able to withstand an over or under voltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.
Features and benefits
· 8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
· 1 group of 8 channels isolated from ground
· 12 Bit resolution
· Input shunt resistors protected to 30 V by PTC resistor
· Analog inputs are short circuit secured to ZP or +24 V
· The input withstand HART communication.
Technical Specifications
| Article number | 3BSE008516R1 |
| Type | Analog Input |
| Signal specification | 0..20mA, 4..20mA, 0..10V, 2..10V |
| Number of channels | 8 |
| Signal type | Unipolar single ended |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
100% brand new and original,All the goods will be tested before shipment.
