ABB 89NG08R1000 GKWN000297R1000 Power Supply Module

89NG08R1000 GKWN000297R1000 Power Supply Module

The 89NG08R1000 power supply module is used for connection and disconnection, distribution, over voltage limitation and monitoring of two redundant supplies, A and B, for a PROCONTROL cabinet. Three versions of the module are available. They differ in the equipment provided for the main circuits:

89NG08/R1000 for a PROCONTROL cabinet with 2 stations

89NG08/R1100 for a PROCONTROL cabinet with 3 stations

89NG08/R1200 for a PROCONTROL cabinet with 4 stations

Description

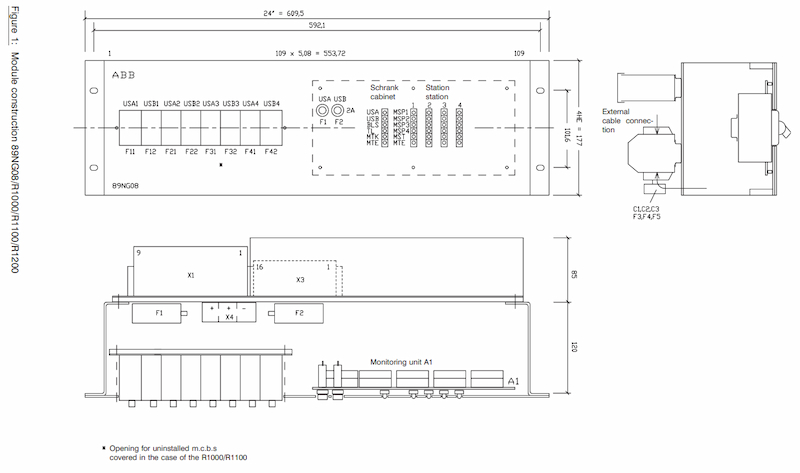

Based on the 19" type to DlN 41494 and lEC publication no.297, the supply module is intended to be mounted on 24"racks, cf. Figure 1.

The m.c.b.s of the main circuits can be operated from the module front. Only the m.c.b.s necessary are provided for each version.

The annunciating unit is the same for all versions and can be connected as required. The signals are annunciated on the front by means of light-emitting diodes.

The supply module is connected on the module rear using terminal blocks for the main circuits and connectors for the signal ling circuits.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
