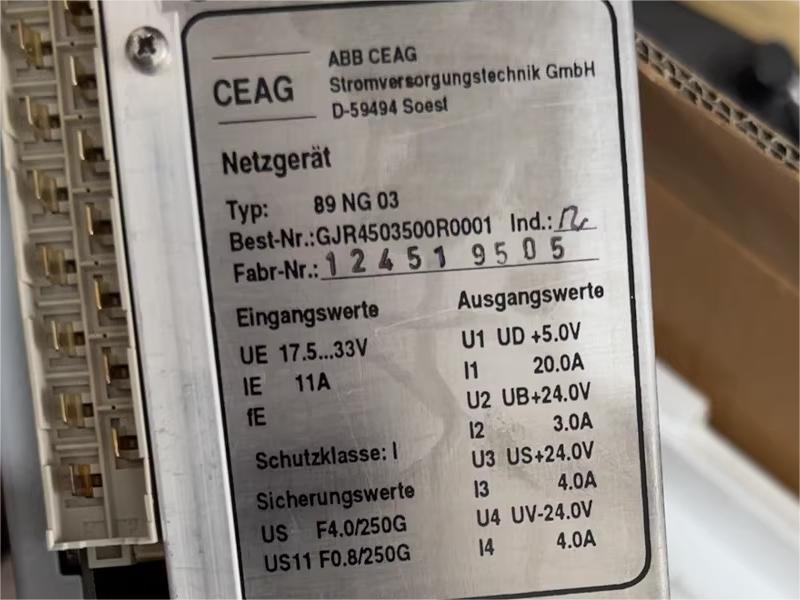

ABB 89NG03 GJR4503500R0001 Power Supply Module

89NG03 GJR4503500R0001 Power Supply Module

The 89 NG03 power supply module is used for switching and generating the voltages required in a station bus sub rack of a PROCONTROL multi-purpose processing station. Since each module sub rack has its own voltage supply, the power supply devices are used altogether 4 times for the multi-purpose processing station.

The printed circuit board 89 IL01, although a self-contained module, is a permanent accessory to the power supply module 89 NG03. It is provided with a row of connectors for connecting cables and for forming a support point.

Features

The power supply module is fed via a plug on the front panel. The process voltage US = +24 VDC is switched depending on the internal voltage UD. The process voltage UV= -24VDC, the reference conductor Z, the annunciation and flashing voltage are only connected through the module.

The voltages UB+ = +24 VDC and UD+ = +5 VDC (with reference conductor ZD) on the bus side and required by the modules are generated via DC/DC converters and are potential-isolated.

The module must not be plugged or withdrawn when live, in order to prevent destruction.

The voltages US, UB+ and UD supplied to the station bus are monitored by the module. In the event of a disturbance, an annunciation and/or switch off takes place.

Technical Specifications
