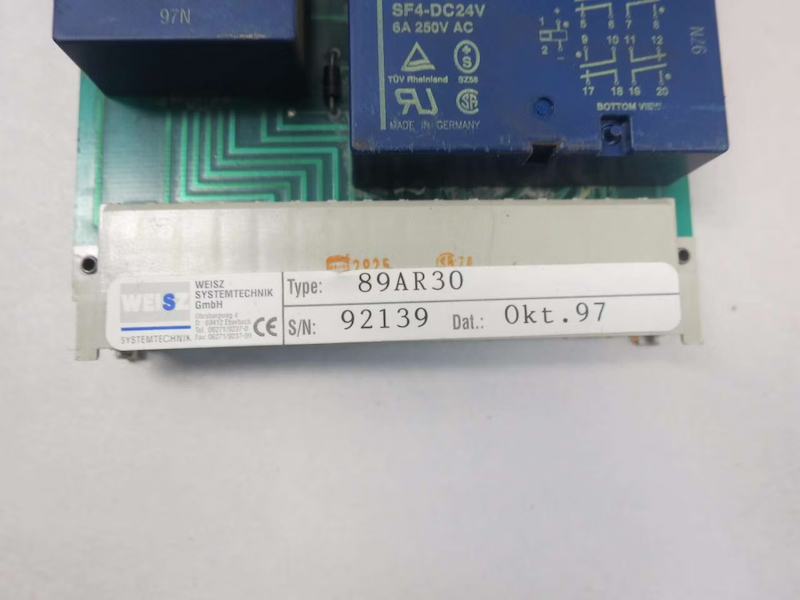

ABB 89AR30 GKWN000326R0100 Relay Unit

89AR30 GKWN000326R0100 Relay Unit

The 89AR30 relay unit is primarily designed to activate the triggering control elements of protection systems.

It is mounted in a standard with drawable compartment acc. to DlN, using 3 units and including a female connector, type F.

Features

The module contains six relays, three of which can be wired according to user-specific needs. The contacts of the other relays are wired in a 2-out-of-3 pattern.

Functional Description

The module contains prototype-tested relays *) with positively driven contacts. The contacts of relays K1, k2, k3 are grouped in two circuits and are wired in 2-out-of-3 order according to the open-circuit principle (external jumpers B18- B20).

Auxiliary contacts can be used to interrogate the individual relay positions.

Relays K4, K5, and K6 are freely available. K4 may be used for instance for the emergency trip push button of a certain protection circuit either based on the closed-circuit or the open-circuit principle. In that case, the required jumpers need to be positioned on the edge connector.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
