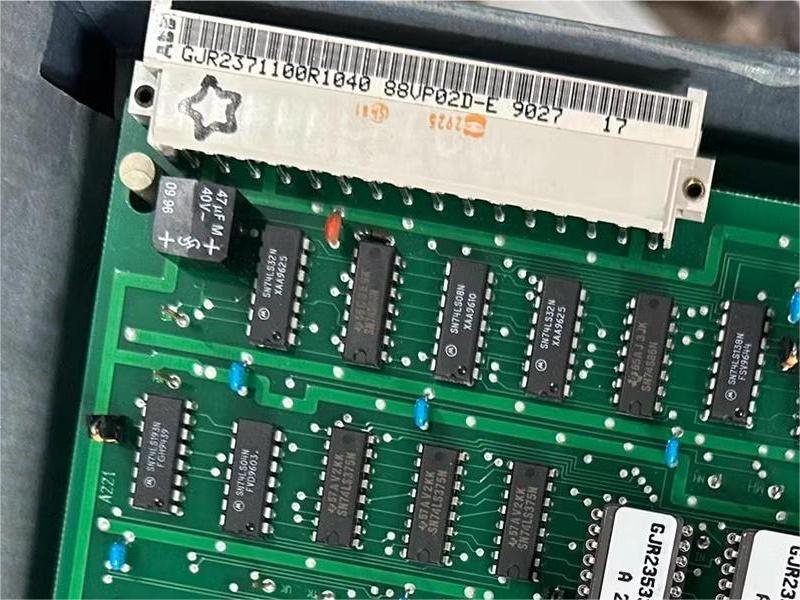

ABB 88VP02D-E GJR2371100R1040 Master Station Processor Module

88VP02D-E GJR2371100R1040 Master Station Processor Module

The 88VP02D-E master station processor module is used with-in a PROCONTROL master station.

Together with the modules 88 VA01/VA02 (control module for transfer procedure) and 88 VT01/VT02  (telegram handling module) it forms part of the central processor within the master station. This processor controls and monitors the entire data transfer on the connected PROCONTROL remote bus system.

Features

The module can be pugged into each of the two master stations of the PRCONTROL bus system, but is only available once for each station. It is provided with two standard interfaces: one of these is used to link the module to the master station bus to which all modules of the master (including master station coupling modules 88 VK01) are connected. The second one is for the general-bus which only connects the modules 88 VP01/VP02, 88VA01/VA02 an 88 VT01/VT02 with each other.

Two connectors and one push button are provided at the front of the module.

A logic analyzer can be connected to this connector. With this analyzer, all important signals, program sequences and all telegrams can be measured for diagnostic functions.

By pressing the push button RST, the entire master station can be reset and, thus, a defined initial state established.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
