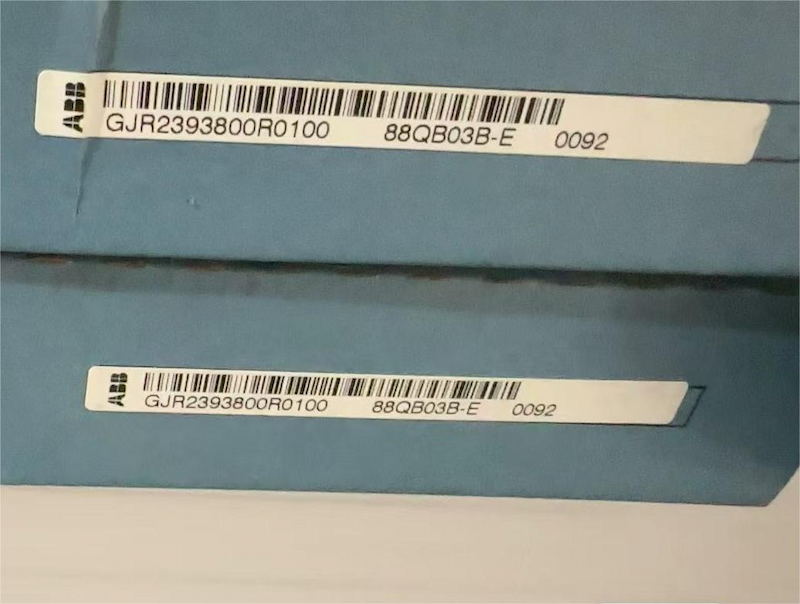

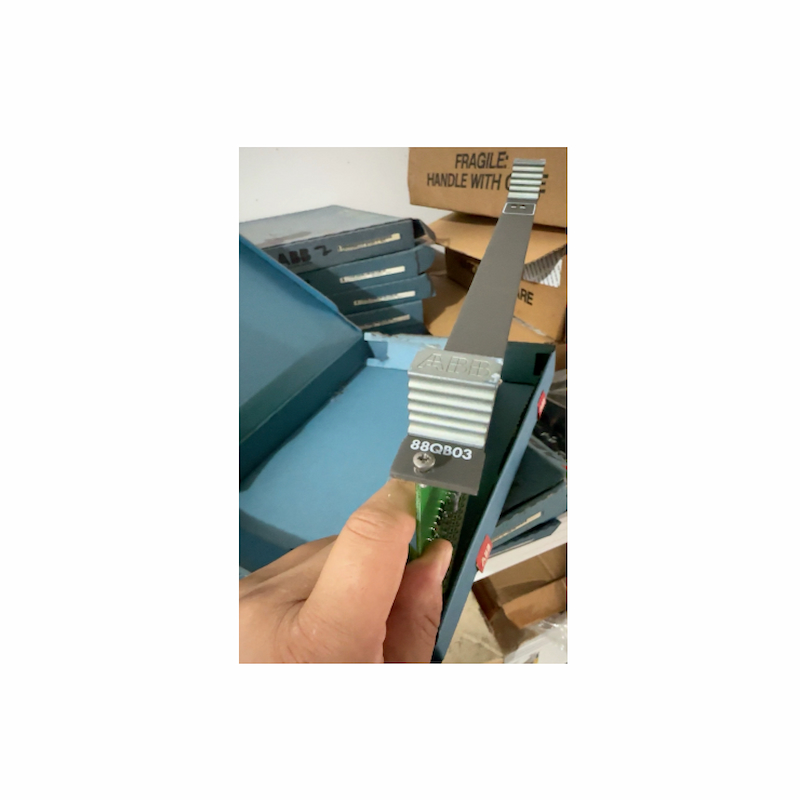

ABB 88QB03B-E GJR2393800R0100 Bus Termination

88QB03B-E GJR2393800R0100 Bus Termination

The 88QB03 Output Module is always installed in the PROCONTROL cabinets 89MS01/R0100/R0200/R0300/R0400 and 89MS02/R0100 in connection with module 88QT03-E/R2111.

The module is required to installed directly on the right of the module 88QT03-E/R2111 seen from the front of the cabinet. Both modules shall be installed in a 24 V sub rack.

Installation of the module in the sub racks together with 89NG03, i.e. 89MS01/R0100/R0200，BGT:D and 89MS01/R0300/R0400, BGT:G is not permissible(standard).

If in contrast with this standard further sub racks are retrofit with 89NG03 in these sub racks, to installation of this module is not pemissible.

Features

The module incorporates the bus termination for connection of 88QT03 to the PROCONTROL-PS bus and/or the input/out-put station and the central clock-pulse supply for 88QT03. It is supplied by a dual 24 V (USA,USB) supply.

Power supplies of the termination resistors and the circuit section for the central clock pulse are generated on the module from 24 V by separate power supply modules. The voltage for the termination resistors is monitored.

Connection to 88QT03 is by means of the process connector. If several 88QB03 modules are installed in a sub rack the central clock pulse can be disconnected by removing a plug-in jumper on the module.

For use in the sub racks of the different PROCONTROL cabinets the module is provided with an additional plug-in jumper by means of which the termination resistors for the central clock can be switched on or off.
