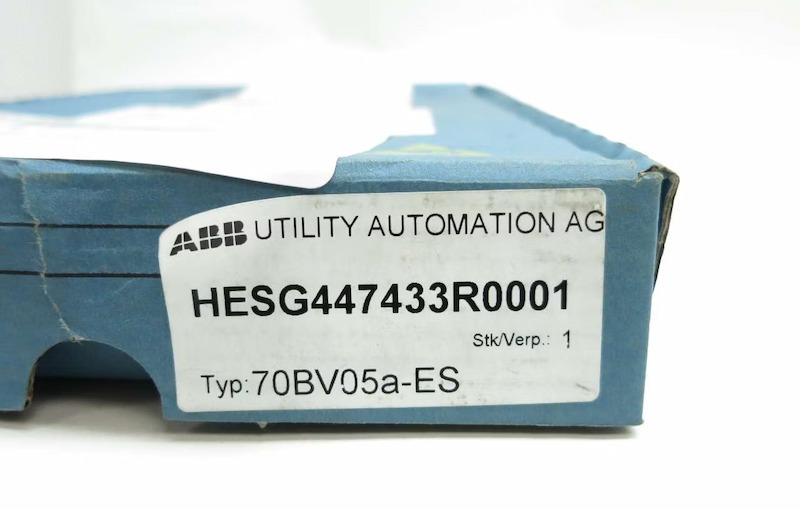

ABB 70BV05A-ES HESG447433R0001 Bus Traffic Director

70BV05A-ES HESG447433R0001 Bus Traffic Director

The 70BV05A-ES is a Bus Traffic Director, manufactured and designed by ABB as part of the P13 Series used in the ABB PROCONTROL P system.

> The data exchange within the station is made via the local bus and is controlled by the local bus traffic director 70BV05 which transmits address words serially and cyclically via the address line of the local bus.

> Each input/output or processing module in the station compares the address on the local bus for coincidence with its own address set with code switches / IL. If identical, the modules send/receive information under the following address to the data lines of the local bus.

> A clock signal transmitted by the local bus traffic director 70BV05 over the clock line of the local bus synchronizes the operation of all individual modules.

> Based on the cycle time selected in BV it transmits address in address bus cyclically.

5 msec allows the transmission of 64 addresses, 00 to 3F

10 msec allows the transmission of 128 addresses, 00 to 7F and 2 service add

20 msec allows the transmission of 256 addresses, 00 to FF and 4 service add

40 msec allows the transmission of 256 normal & 256 service/special address (70BV05), 00 to FF and S00 to SFF

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
