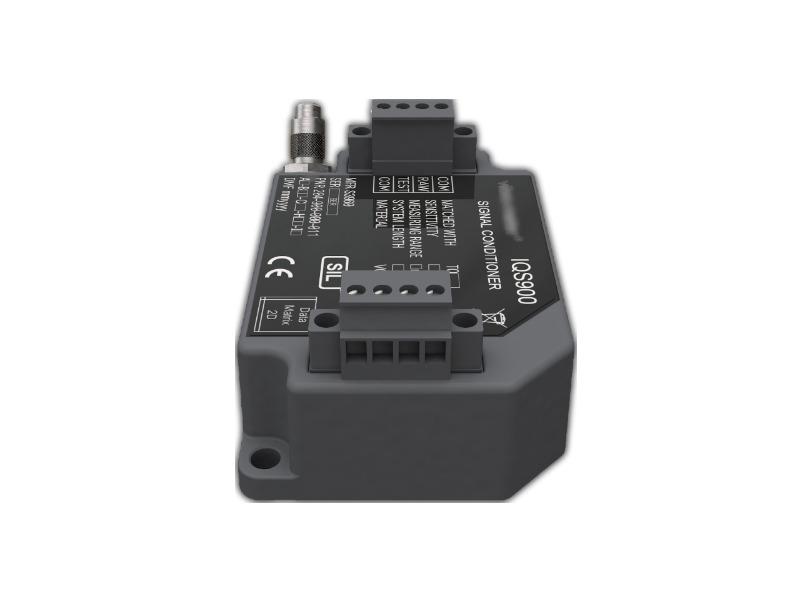

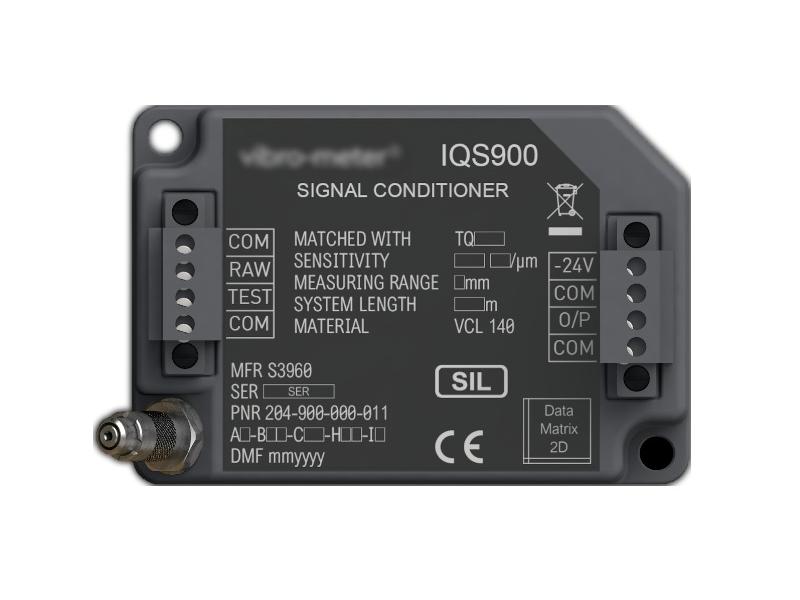

IQS900 204-900-000-011 A1-B21-C1-H05-I0 Signal Conditioner

IQS900 204-900-000-011 A1-B21-C1-H05-I0 Signal Conditioner

The IQS900 is compatible with different TQ9xx (and TQ4xx sensors) and replaces all previous versions of the IQS45x signal conditioner (PNR 244-45x-000-xxx).

The IQS900 signal conditioner provides a dynamic output signal – current (−15.5 to −20.5 mA) or voltage (−1.6 V to −17.6 V) – suitable for advanced condition monitoring applications that require spectral analysis, for example, machinery analytics and diagnostics. In comparison, the IQS910 signal conditioner provides a slowly-varying output signal (4 to 20 mA current-loop) suitable for machinery protection and/or basic condition monitoring applications based on cost-effective trending of overall levels.

The IQS900 is a configurable and versatile device that generates, converts and processes (high-frequency modulator/demodulator) signals from a TQ proximity sensor into a current or voltage output signal suitable for transmission to the monitoring system. For example, it is factory-configurable for sensitivity and measurement range (transfer function), system length, and optional diagnostic circuitry (with variants defined by ordering option code).

The IQS900 is designed and built for long-term use, and is available in standard versions and in Ex versions certified for use in potentially explosive atmospheres (hazardous areas). Similarly, it is also available with or without diagnostics: versions with diagnostics automatically and remotely indicate the health/status of the measurement chain so you always know when measurements can be trusted. The diagnostics (SIL 2 “by design”) bring enhanced reliability and significant risk reduction, making the IQS900 suitable for use in safety-related applications (functional safety contexts).

Features

· Signal conditioning for TQ proximity sensors.

· Shaft relative vibration and gap/position measurement for machinery protection and/or advanced condition monitoring.

· Very wide frequency range (DC to 20000 Hz), with configurable sensitivity and measurement range.

· Current output for signal transmission over long distances or voltage output for signal transmission over medium distances.

· Certified for use in potentially explosive atmospheres (hazardous areas).

· Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508 and Cat 1 PL c in accordance with ISO 13849.

· Fully compliant with API 670 5th edition.

· "Raw”output and "Test”input signals for in-situ test support.

Technical Specifications

IQS900 has the following main features:

Multifunctional sensing measurement: It can simultaneously measure a variety of physical quantities, including temperature, humidity, pressure, gas concentration, etc., to provide users with comprehensive environmental data.

High accuracy and stability: It uses advanced sensor technology and signal processing algorithms to ensure high measurement accuracy and good stability.

Industrial-grade design: It meets industrial standards, has good durability and reliability, and is suitable for long-term operation in harsh environments.

Intelligent function: Built-in intelligent algorithm, which can analyze data and make feedback in real time, and supports remote monitoring and control.

Easy to integrate: It provides standard interfaces and communication protocols, which is convenient for integration with various systems, rapid deployment and use.

In short, IQS900 is a high-performance, multi-functional, stable and reliable smart sensor, which provides an ideal solution for data acquisition and control in the industrial and scientific fields.
