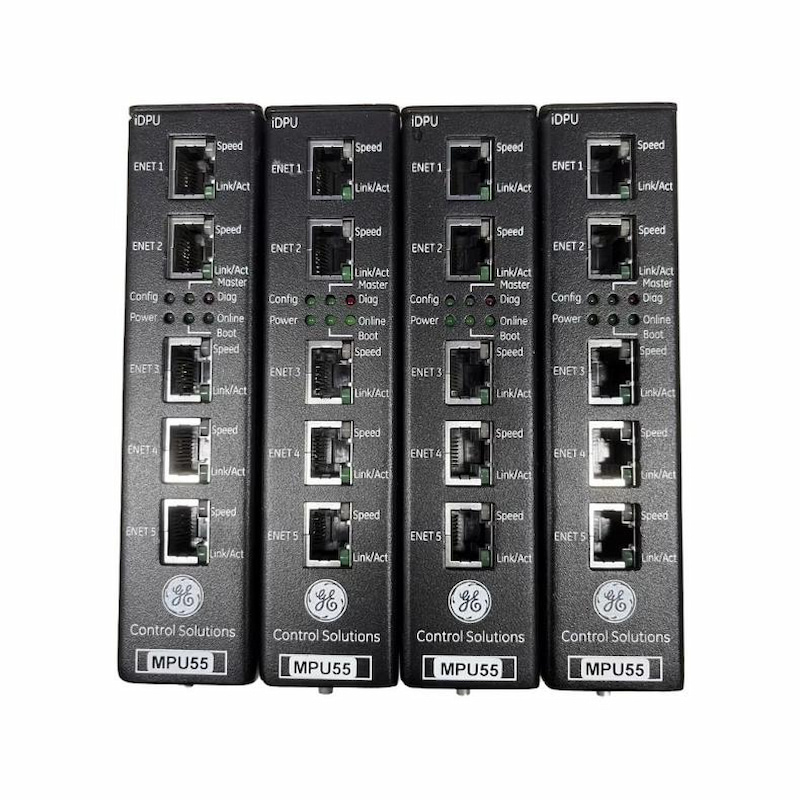

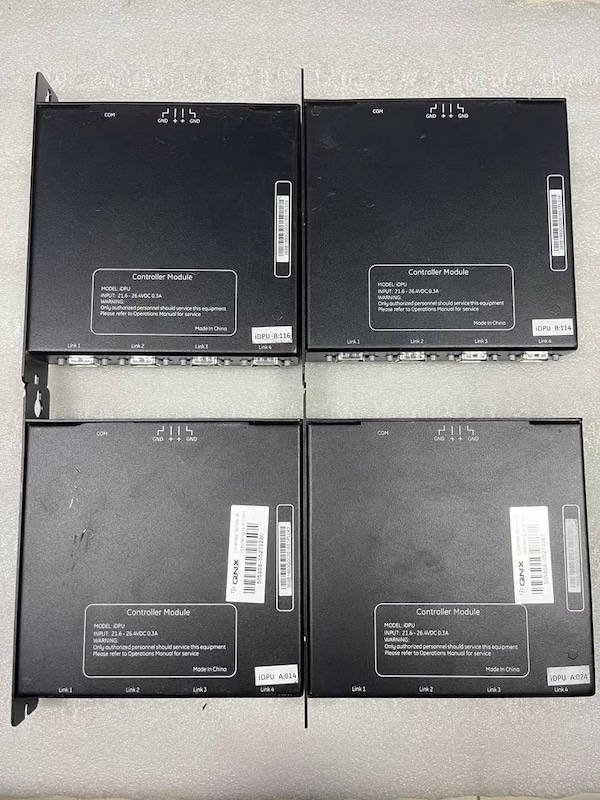

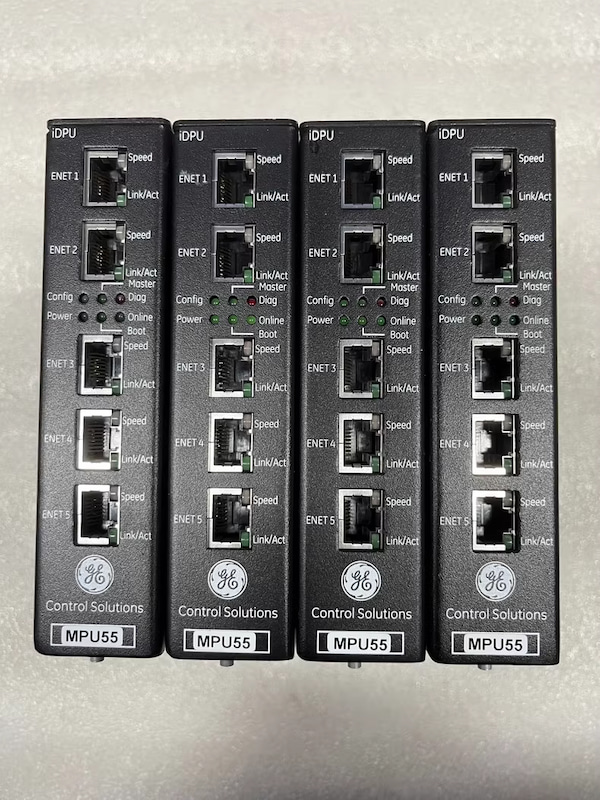

GE MPU55 369B1860G0026 Controller Module

GE MPU55 369B1860G0026 Controller Module

The iDPU series MPU55 controller is applied in the Nexus system. It is an integrated stand alone computer that runs the application code for industrial process control and data communication. The controller mounts directly in a panel. Real-Time I/O data is transferred to and from the control system over the intelligent I/O buses (iLink) between the Nexus I/O module and the controller. The Operating System (OS) is QNX® Neutrino®, a real-time multitasking OS designed for high-speed, high-reliability industrial applications. The controller is loaded with software specific to its application, which includes but is not limited to third-party communication, boiler control, boiler protection, steam turbine control, and balance of plant products. The function block based programming language complies with IEC1131-3 standards and offers advantages in graphic configuration and debugging. Time synchronization of the I/O network is implemented through iLink (R or S bus), and the synch accuracy can reach ±100us. Data communication between controllers and other system nodes is implemented through UDH (Unit Data Highway) A and/or B.

In a simplex system, I/O network data includes process inputs/outputs to the I/O modules.

In a dual system, I/O network data includes:

· Process inputs/outputs to the I/O modules

· Internal state values and initialization information from the designated controller

· Status and synchronization information from both controllers

iDPU controller is an integrated single-board industrial computer which contains:

· One 1.6GHz Intel® ATOMTM processor

· 512MB DDR2 RAM and 2G flash memory

· Two 10/100/1000Mbps Ethernet interfaces for UDH networks

· Two 10/100/1000Mbps Ethernet interfaces as extended connection for other control equipment

· One 10/100/1000Mbps Ethernet interface for Master/Backup controller tracking

· Four DB-9 intelligent bus interfaces

· One RJ45 RS-232C connection for controller setup

· One USB port for controller base load and firmware downloading

The iDPU series controller offers the following advantages:

· Integrated design, single-board architecture, industrial-strength protective shell

· Small panel footprint, a smaller installation space is required

· No jumper setting required

· No battery

· Fan-free operation

· On-board non-volatile flash memory, effectively avoid connection problem caused by transportation/vibration

· Redundant 24V dc power inputs

Technical Specifications
