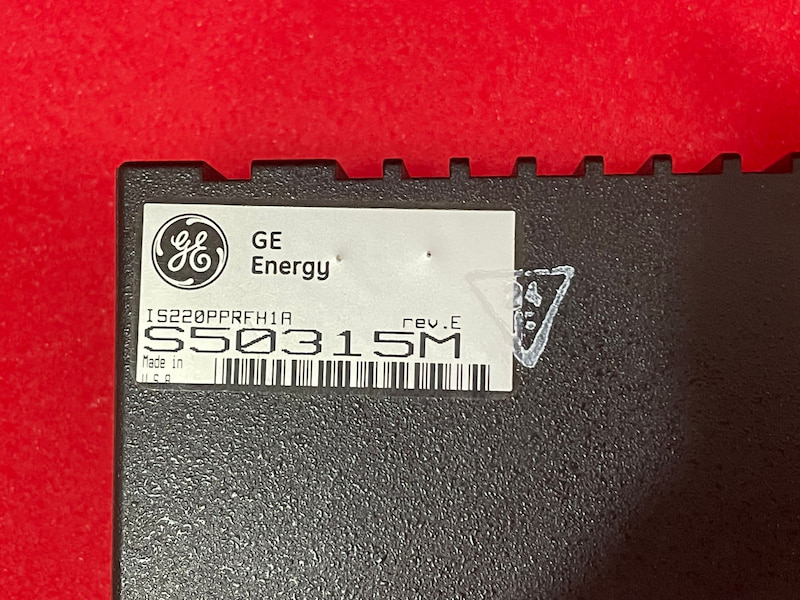

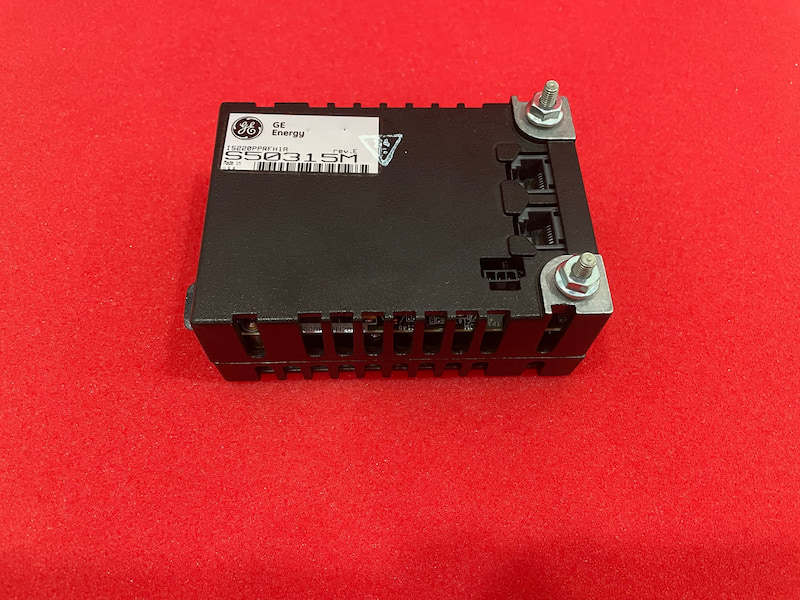

The IS220PPRFH1A is a PROFIBUS Master Gateway I/O Pack, manufactured and designed by General Electric as part of Mark VIe Series used in gas turbine control system.
Brand :
GEPart number :
IS220PPRFH1ADescription :
PROFIBUS Master Gateway I/O PackOrigin :
USACondition :
NewDimension :
8.3 cm × 4.2 cm × 12.2 cmWeight :
340 gPayment :
Bank Transfer
GE IS220PPRFH1A PROFIBUS Master Gateway I/O Pack
The PROFI BUS Master Gateway (PPRF) I/O pack is a PROFI BUS DP-V0 or DP-V1, Class 1 Master, that maps I/O from PROFI BUS slave devices to Mark* VIe controllers on the IONet. The I/O pack contains a BPPx processor board and an acquisition carrier board fitted with a COM-C PROFI BUS communication module supplied by Hilscher GmbH.
The COM-C module provides a PROFI BUS RS-485 interface through a DE-9 D-sub receptacle connector. It serves as a PROFIBUS DP master supporting transmission rates from 9.6 Kbps to 12 Mbps and up to 124 slaves with up to 244 bytes of inputs and outputs per slave.
The PROFI BUS Master Gateway Terminal board (SPIDG1A) is used to mount the I/O pack and to supply an electronic ID. Its only connection is the interface to the I/O pack itself, as the PROFI BUS connection is made to the DE-9 D-sub receptacle connector exposed on the side of the I/O pack. Visual diagnostics are provided through indicator LEDs on the I/O pack.
Compatibility
The PPRF I/O pack includes one of the following BPPx processor boards:
• PPRFH1A contains a BPPB processor board
• PPRFH1B contains a functionally compatible BPPC that is supported in the ControlST* software suite V04.04 and later
The PPRF supports the following redundancy options:
• Single I/O pack with single I/O Ethernet connection (no redundancy)
• Single I/O pack with dual I/O Ethernet connections
• HotBackup I/O pack with dual I/O Ethernet connections
The dual I/O Ethernet connection configuration is common to other I/O packs. However, in the HotBackup, two PPRFs are employed, one operating as the active PROFI BUS master communicating with slave devices, and the other operating in a passive, stand-by mode, ready to become the active master if an active master failure occurs.
Technical Specifications
Manufacturer | GE |
Part Number | IS220PPRFH1A |
Ordering Information | IS220PPRFH1A |
Product Catalog | Mark VIe Series |
Description | PROFI BUS Master Gateway I/O Pack |
Voltage | 24 Vdc |
Current | 1 A |
Dimensions | 8.3 cm × 4.2 cm × 12.2 cm |
Weight | 340 g |
