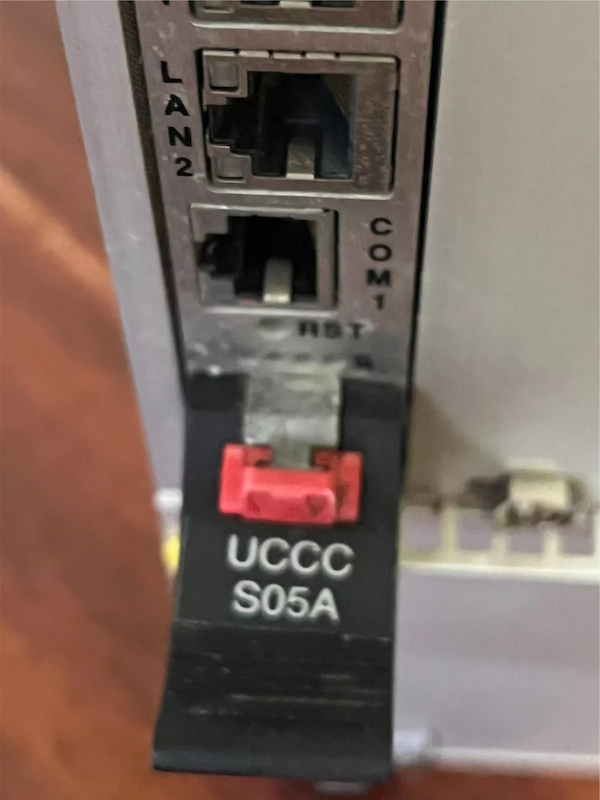

GE IS215UCCCS05A Mark VIeS Safety Controller Board

GE IS215UCCCS05A Mark VIeS Safety Controller Board

The IS215UCCCS05A is a CPCI Controller Board, manufactured and designed by General Electric as part of Mark VIeS Serie based on UCCC platform.

  • Brand :

    GE
  • Part number :

    IS215UCCCS05A
  • Description :

    Mark VIeS Safety Controller Board
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    38.9 cm x 23.4 cm x 2.3 cm
  • Weight :

    0.8 kg
  • Payment :

    Bank Transfer
Contact Us:



GE IS215UCCCS05A Mark VIeS Safety Controller Board

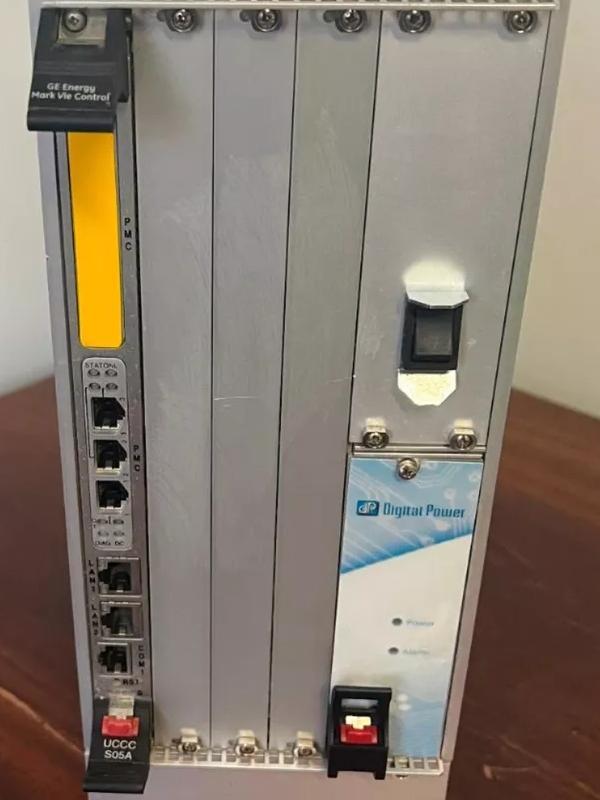

The IS215UCCCS05A controller is a single-board computer that runs the application code. The controller mounts in a CompactPCI (CPCI) enclosure and communicates with the I/O packs through on-board I/O network interfaces. The CPCI enclosure typically consists of a 6U high rack, one or two 3U high power supplies, a 6U high single board, and a cooling fan. The rack backplane is CPCI compliant, but is used only to provide power from the power supply(s) to the controller and cooling fan. The CPCI power supply converts the bulk incoming power to ±12 V dc, 5 V dc, and 3.3 V dc. These voltages are distributed to the controller(s) and fan through the backplane.



The CPCI power supply takes the incoming bulk power from the CPCI backplane and creates ±12, 5, and 3.3 V dc. This power is provided to the backplane through one or two Mate-N-Lok® connectors, for use by the power supply(s), controller(s) and cooling fan. The power supply is a CPCI hot swap compliant 3U power supply using the standard CPCI 47-pin connector. Two power supplies can be used to provide power supply redundancy in an optional rack.



The controller operating system (OS) is QNX® Neutrino®, a real-time, multitasking OS designed for high-speed, high-reliability industrial applications. The following communication ports provide links to I/O modules, operator, and engineering interfaces:



• Ethernet connection for the Unit Data Highway (UDH) for communication with HMIs, and other control equipment. The UCCC controller has an additional Ethernet connection for the Control Data Highway (CDH).

• RS-232C connection for setup using the COM1 port

• Ethernet connection for the R, S, and T I/O network



Technical Specifications

Item UCCC Specification
Microprocessor Intel Pentium M processor 1.6 GHz
Memory 256 MB DDR SDRAM through one SODIMM
128 MB CompactFlash Module
256 KB L2 cache
Flash-backed SRAM - 8K allocated as NVRAM for controller functions
Flash 128 MB ComactFlash module (GE part #336A5196AAP8)
Operating System QNX Neutrino
Programming Control block language with analog and discrete blocks; Boolean logic represented in relay
ladder diagram format. Supported data types include:
Boolean
16-bit signed integer
16-bit unsigned integer
32-bit signed integer
32-bit unsigned integer
32-bit floating point
64-bit long floating point
Primary Ethernet Interface (2) Twisted pair 10Base-TX/100Base-TX, RJ-45 connectors:
TCP/IP protocol used for communication between controller and toolbox
TCP/IP protocol used for alarm communication to HMIs
EGD protocol for application variable communication with CIMPLICITY HMI and
Series 90-70 PLCs
Ethernet Modbus protocol supported for communication between controller and
third-party DCS
EPMC Ethernet Interface (3 ports) Twisted pair 10Base-TX/100Base-TX, RJ-45 connectors:
TCP/IP protocols used to communicate between controllers and I/O modules
COM port One accessible through RJ-45 connector on front panel
For cabling use GE-provided Ethernet cables, which are specifically designed for
use in the Mark* controller product family (GE part #342A4931ABP1)
Power requirements 5 V dc (5%, -3%, 4.5 A (typical), 6.75 maximum)
3.3 V dc, (5%, -3%, 1.5 A (typical), 2.0 A maximum)
12 V dc (5%, -3%), 50 mA maximum
-12 V dc (5%, -3%), 50 mA maximum
Mechanical Specifications Shock: 10 Gs, 16 ms half sine, 6 axis, 10 pulses each
Vibration: 6 Gs rms (20-2000 Hz) random, 0.0185 G2 per Hz
† Ambient rating for enclosure design 0 to 50°C (32 to 122 °F)



GE IS215UCCCS05A



IS215UCCCS05A



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
