The IS210WSVOH1A is a Servo Driver Board, manufactured and designed by GE Energy applied in the Mark VIe Series.
Brand :
GEPart number :
IS210WSVOH1ADescription :
Servo Driver AssemblyOrigin :
USACondition :
NewDimension :
8.26 cm x 4.19 cm x 12.1 cmWeight :
4 kgPayment :
Bank Transfer

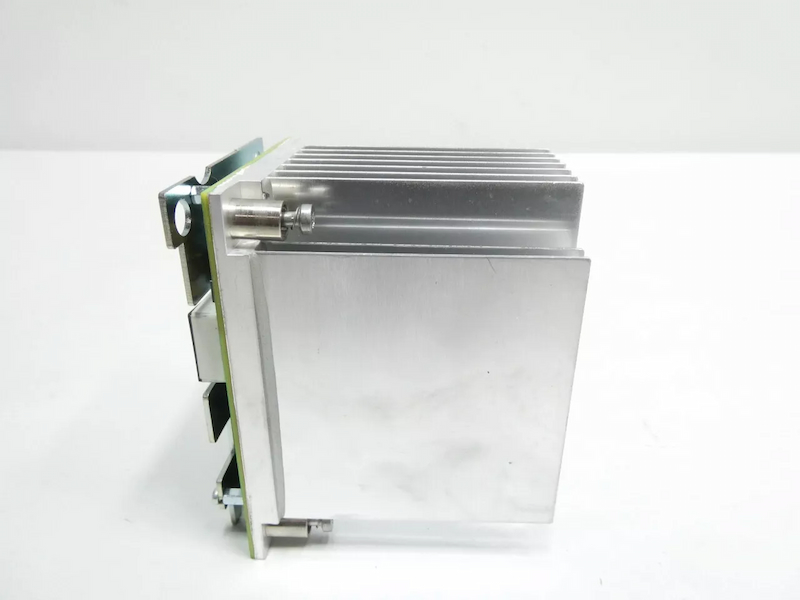

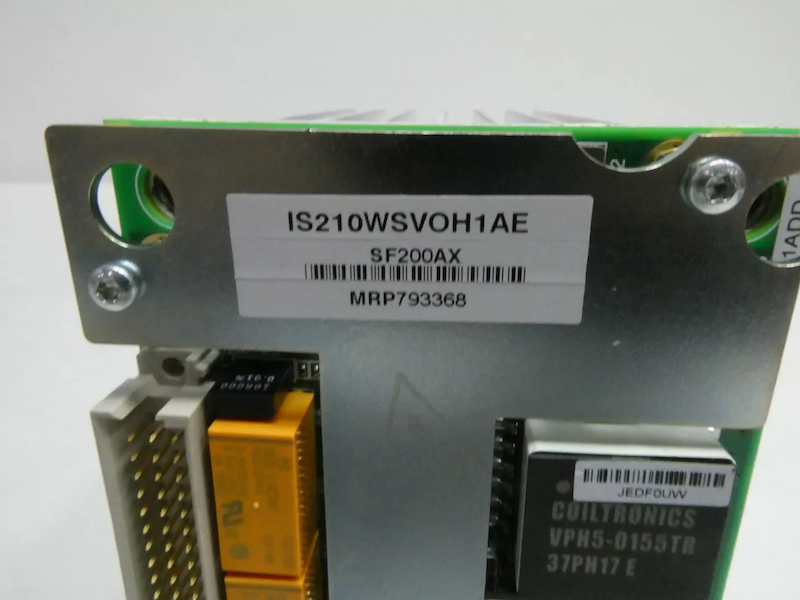

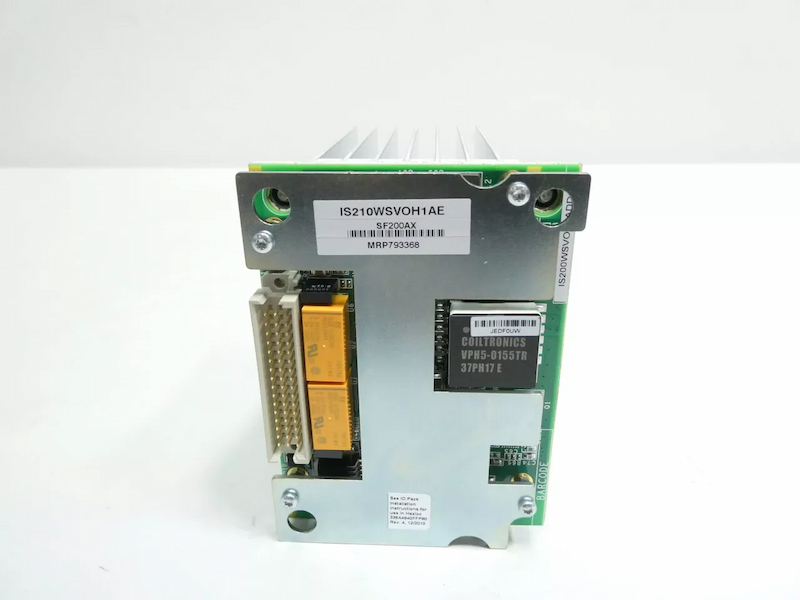

GE IS210WSVOH1A Servo Driver Assembly
The IS210WSVOH1A servo driver assembly has a power supply that converts the P28 voltage input to a positive 15 V and negative 15 V output for the servo current regulator circuits. There are two servo current regulators working off the current references from the servo pack. The servo driver circuit has a selection of five configurable gains, and the assembly contains the servo suicide relays and excitation output driver circuits.
The three J2 connectors for the WSVO servo drivers are R, S, and T. Each WSVO is held down with four screws. The WSVO servo driver and PSVO I/O pack are ordered as a set and should be replaced if diagnostics indicate a servo problem.
The PSVO pack and WSVO driver can be replaced with the unit running by removing power from the failed channel with the corresponding manual enable switch, SW1, or SW2, or SW3. Power to each channel is indicated with LEDs on the board and LEDs on each solid-state power switch.
Technical Specifications
| Item | Specification |
| Number of inputs | Eight LVDT windings Two pulse rate signals |
| Number of outputs | Two servo valve currents Two excitation sources for LVDTs Two excitation sources for pulse rate transducers |
| Power supply voltage | Nominal 28 V dc |
| LVDT accuracy | 1% with 14-bit resolution |
| LVDT input filter | Low pass filter with 3 down breaks at 50 rad/sec ±15% |
| LVDT common mode rejection | CMR is 1 V, 60 dB at 50/60 Hz |
| LVDT excitation output | Frequency of 3.2 ±0.2 kHz Voltage of 7.00 ±0.14 V rms |
| Pulse rate accuracy | 0.05% of reading with 16-bit resolution at 50 Hz frame rate Noise of acceleration measurement is less than ±50 Hz/sec for a 10,000 Hz signal being read at 10 ms |
| Pulse rate input | Minimum signal for proper measurement at 2 Hz is 33 mVpk, and at 12 kHz is 827 mVpk |
| Magnetic PR pickup signal | Generates 150 V p-p into 60 kΩ |
| Active PR Pickup Signal | Generates 5 to 27 V p-p into 60 kΩ |
| Servo valve output accuracy | 2% with 12-bit resolution Dither amplitude and frequency adjustable |
| Fault detection | Servo current out of limits or not responding Regulator feedback signal out of limits Servo suicided Calibration voltage range fault The LVDT excitation is out of range The input signal varies from the voted value by more than the TMR differential limit Failed ID chip |
| Physical | 8.26 cm high x 4.19 cm wide x 12.1 cm deep (3.25 in. x 1.65 in. x 4.78 in.) |
| Technology | Surface-mount |
| Temperature | Operating: -30 to 65ºC (-22 to +149 ºF) |
