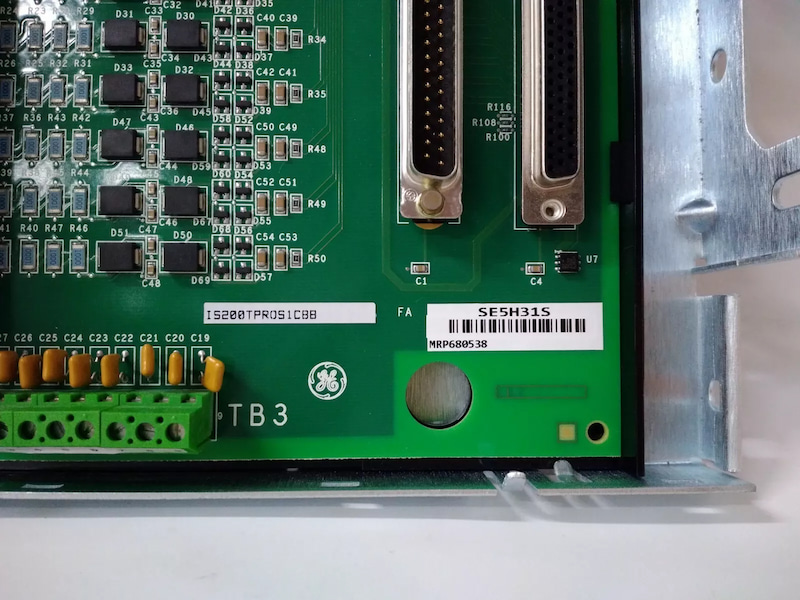

The IS200TPROS1C is a Emergency Protection Terminal Board, it features two 24 barrier terminals, each in a pluggable block.
Brand :
GEPart number :
IS200TPROS1C IS200TPROS1CBBDescription :
Emergency Protection Terminal BoardOrigin :
USACondition :
NewDimension :
15.9 cm x 17.8 cm x 3.8 cmWeight :
0.4 kgPayment :
Bank Transfer
GE IS200TPROS1C IS200TPROS1CBB Emergency Protection Terminal Board

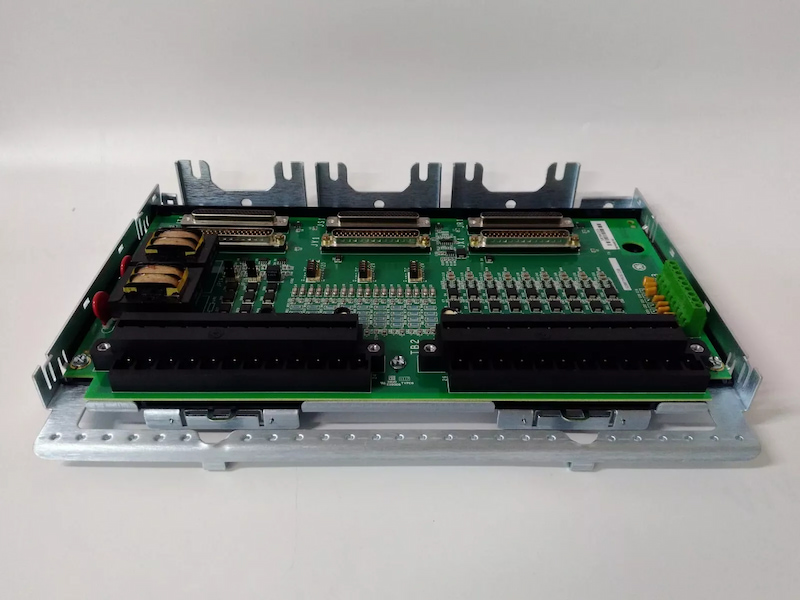

The IS200TPROS1C Emergency Protection (TPRO) terminal board hosts three PPRO I/O packs. It conditions speed signal inputs for the PPROs and contains a pair of potential transformers (PTs) for bus and generator voltage input. It has three DC-37 pin connectors, each adjacent to the PPRO pack connectors. Each DC-37 accepts a cable leading to a Mark* VIe backup trip relay terminal board.
Compatibility
TPROH1C works with the PPRO I/O pack and supports simplex and TMR applications. In TMR systems, TPROH1C connects to three PPRO I/O packs. Both TPROH1C and H2C accept direct mounting of three PPROH1As and provide DC-37 connectors for three cables to the selected backup trip relay terminal boards.
Installation
The TPROH1C or TPROH2C and a plastic insulator mount on a sheet metal carrier, which mounts on a DIN-rail. Optionally, the TPRO and insulator mount on a sheet metal assembly, which bolts directly in a panel. Speed signals and PT inputs are wired directly to the terminal block using typical #18 AWG wires. The TPROH1C barrier terminal block is removable for board replacement. The TPROH2C is a pluggable Euro Block type terminal block with removable terminals.
The R, S and T PPRO I/O packs mount on TPRO connectors JR1, JS1 and JT1, respectively. Three DC-37 pin conductor cables plug into TPRO connectors JX1, JY1 and JZ1 with the other ends attached to the selected backup trip terminal boards.
Technical Specifications
| Item | Specification |
| Generator and bus voltage sensors | Two single-phase potential transformers, with secondary output supplying a nominal 115 V rms Each input has less than 3 VA of loading. Allowable voltage range for synch is 75 to 130 V rms Each PT input is magnetically isolated with a 1,500 V rms barrier. Cable length can be up to 1,000 ft. of 18 AWG wiring. |
| Magnetic speed pickup pulse rate range | 2 Hz to 20,000 Hz |
| Magnetic speed pickup pulse rate accuracy | 0.05% of reading |
| Speed input sensitivity | Required peak-peak voltage rises as a function of frequency: 0 — 2 kHz requires 27 mV 2 k Hz — 6 kHz requires 50 mV 6 k Hz — 10 kHz requires 100 mV 10 k Hz — 15 kHz requires 160 mV above 15 kHz requires 250 mV |
| Size | 15.9 cm high x 17.8 cm wide (6.25 in. x 7.0 in.) |
| Technology | Surface-mount |
| Temperature | Operating: -30 to 65ºC (-22 to +149 ºF) |
| P24V1 P24V2 P24V3 |
There are three 24 V outputs for customer (not voted), with each supporting a max current output of 25 mA. |
