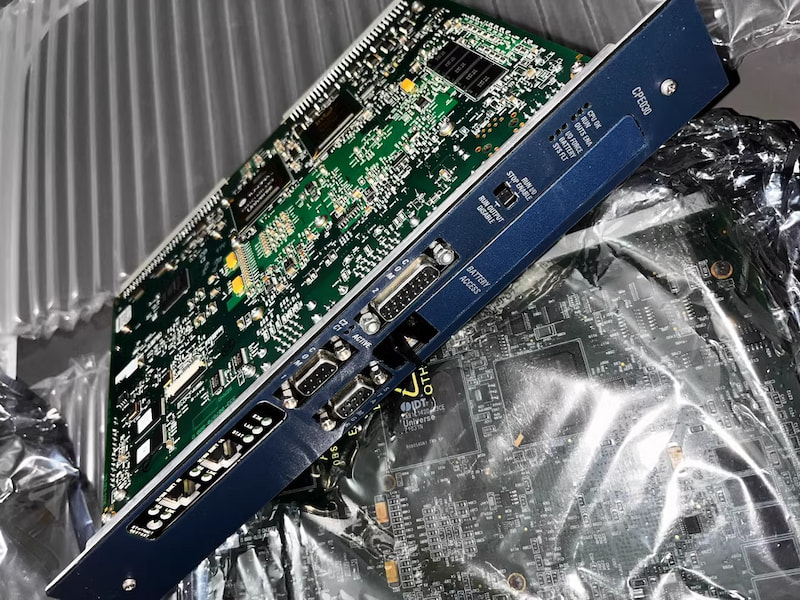

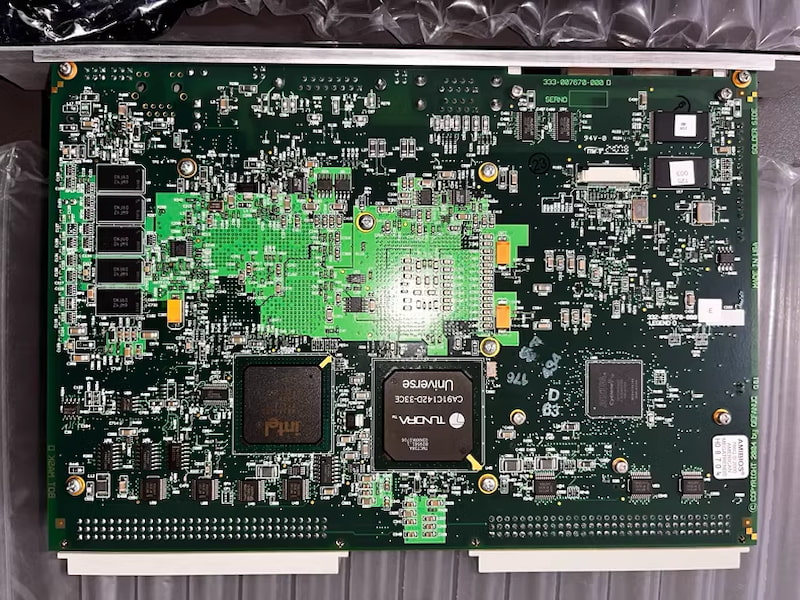

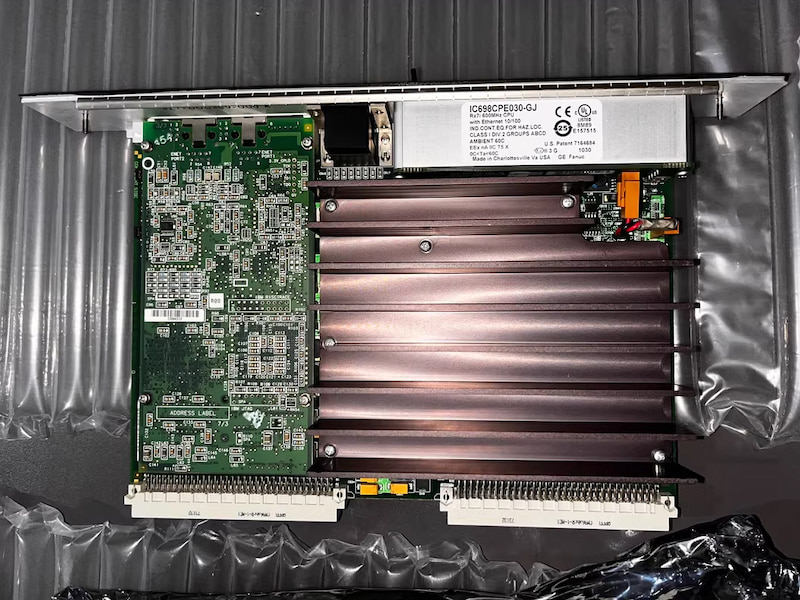

GE Fanuc IC698CPE030 Central Processing Unit

GE Fanuc IC698CPE030 Central Processing Unit

The IC698CPE030 is a 600 MHz central processing unit, manufactured and designed by GE fanuc as spare of RX7i series used in PACSystems.

The PACSystems Rx7i PLC is a versatile and robust solution for automation control, offering direct network connections, easy software upgrades, and reliable data retention. It's an integral part of the PACSystems product family, designed to streamline and enhance automation processes. Whether you're looking to automate a factory or integrate controllers into a multi-vendor network, the PACSystems Rx7i PLC is a reliable and high-performing choice.

The RX7i CPUs are programmed and configured by the programming software to perform real time control of machines, processes, and material handling systems. The CPU communicates with I/O and smart option modules over a rack-mounted backplane using the VME64 Standard format. It communicates with the programmer and HMI devices via the embedded Ethernet ports or a serial port using SNP Slave protocol.

Serial Ports

· IC698CPE030 has three independent, on-board serial ports, accessed by connectors on the front of the module. COM1 and COM2 provide serial interfaces to external devices; either can be used for firmware upgrades. The third serial port is a dedicated Ethernet Station Manager port. For serial port pin assignments, electrical isolation and details on serial communications.

Ethernet Ports

· Two RJ45 ports support Ethernet communications

Indicators

· Seven CPU LEDs indicate the operating status of various CPU functions. Two Comm LEDs indicate activity on COM1 and COM2.

Features

■ Programming in Ladder Diagram, Function Block Diagram, Structured Text and C.

■ Floating point (real) data functions.

■ Configurable data and program memory.

■ Battery-backed RAM for user data (program, configuration, register data, and symbolic variable) storage

■ Non-volatile built-in flash memory for user data (program, configuration, register data, and symbolic variable) storage. Use of this flash memory is optional.

■ Battery backup for program, data, and time of day clock.

■ Configurable Run/Stop mode switch.

■ Embedded RS-232 and RS-485 communications.

■ Up to 512 program blocks. Maximum size for a block is 128KB.

■ Auto Located Symbolic Variables, which allows you to create a variable without specifying a reference address.

■ Bulk memory area accessed via reference table %W. The upper limit of this memory area can be configured to the maximum available user RAM.

■ Larger reference table sizes, compared to Series 90 CPUs: 32Kbits for discrete %I and %Q and up to 32K words each for analog %AI and %AQ.

■ Online Editing mode that allows you to easily test modifications to a running program. Bit in word referencing that allows you to specify individual bits in a WORD reference in retentive memory as inputs and outputs of Boolean expressions, function blocks, and calls that accept bit parameters.

■ In-system upgradeable firmware.

Technical Specifications
