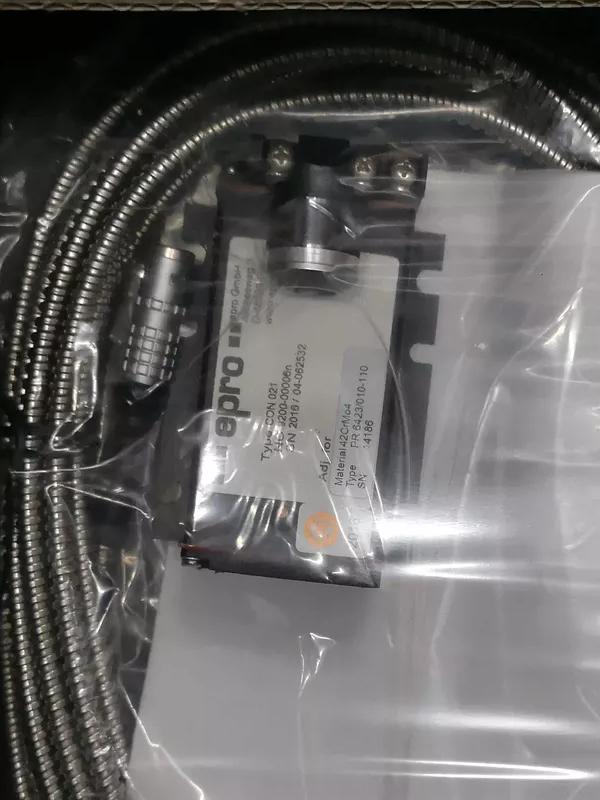

Emerson EPRO PR6423/010-110 8mm Eddy Current Sensor

EPRO PR6423/010-110 8mm Eddy Current Sensor

The PR6423/010-110 is a radioactive radiation resistant non-contact eddy current transducer. The construction and design allows this sensor to be used in nuclear radiation zone 1 applications on turbo machinery, reactor coolant pumps and other motors, pumps, fans or blowers.

The purpose of a displacement probe is to measure position or shaft movement without contacting the measured surface – the rotor. In the case of sleeve bearing machines, the shaft is separated from the bearing material by a thin film of oil. The oil acts as a dampener and therefore the vibration and position of the shaft are not transmitted through the bearing to the bearing case.

The use of case vibration sensors is discouraged for monitoring sleeve bearing machines since the vibration produced by shaft motion or position is greatly attenuated through the bearing oil film. The ideal method of monitoring shaft position and motion is by mounting a non contact eddy sensor through the bearing, or inside the bearing, measuring the shaft motion and position directly.

The PR 6423 is commonly used to measure vibration of machine shafts, eccentricity, thrust (axial displacement), differential expansion, valve position, and air gaps.

· Radioactive radiation resistant, zone 1

· Non-contact measurement of static and dynamic shaft displacement

- Axial and radial shaft displacement (position)

- Shaft eccentricity

- Shaft vibration (motion)

· Meets international standards, DIN 45670, ISO 10817-1 and API 670

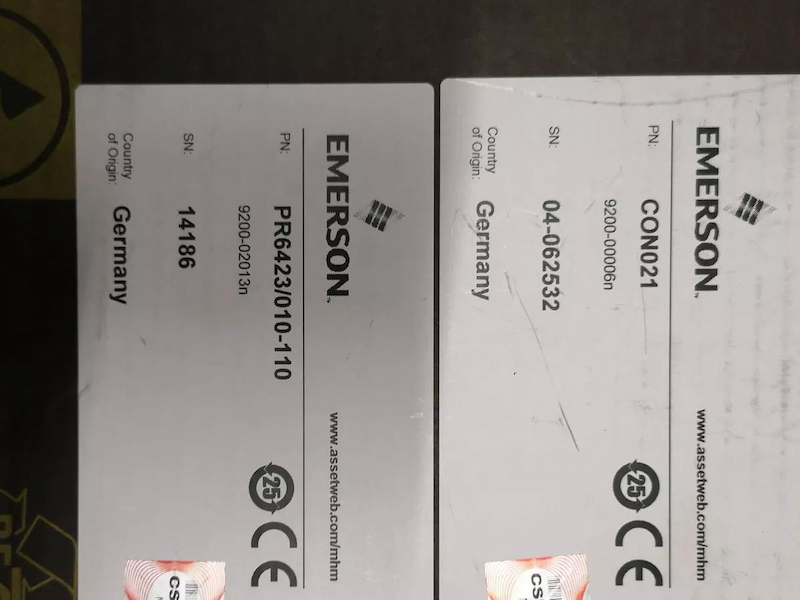

· Select converter for sensor such as CON 011/91, 021/91, 041/91, and cable for complete transducer system
