The CON021 Eddy Current Signal Converter is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key.
Brand :
Emerson EPROPart number :
CON021Description :
Eddy Current Signal ConverterOrigin :
GermanyCondition :
NewDimension :
86 mm × 56 mm × 38.5 mmWeight :
120 gPayment :
Bank Transfer

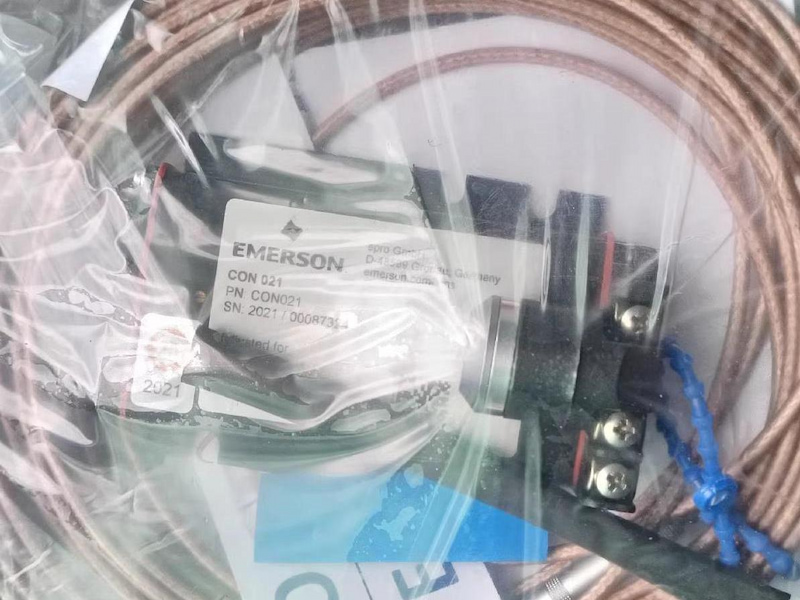

EPRO CON021 Eddy Current Signal Converter
The Epro CON021 is an Eddy-current proximimty sensor, these type of sensors measure both vibration and the distance between sensor tip and monitored rotating machine part. The measuring chain consists of a sensor, a cable and a converter and this chain is calibrated together.
Technical Parameters
· Compatible sensors: PR6422, 6423, 6424, 6425, 6426
· Meas. range: 1 mm to 24 mm acc. to sensor
· Sensor connected by LEMO plug
· Metallic box, protection class IP20
· Operating temperature: -35...+100 °C
· Power supply: -24 VDC, 15 mA
· Output signal: -2...-18 V or +4...-20 V
· Version CON021/91 for extended ranges up to 24 mm
· Pure analog device
· Configuration and calibration require hardware modifications
· Obsolete, use EZ1000 for new projects
Dynamic Performance | |
Frequency Range (-3 dB) | 0 to 20000 Hz |
Rise Time | <15 µs |
NOTE: Designed for PR6422, PR6423, PR6424, PR6425, PR6426, PR 6453 For extended range use: CON021/91x-xxx PR6425 always requires extended range converter |
|
Environmental | |
Operating Temperature Range | -30 to 100°C (-22 to 212°F) |
Shock and Vibration | 5g @ 60 Hz @ 25°C (77°F) |
Protection Class | IP20 |
Power & Electrical | |
Supply Voltage Range | -23V to -32V (Output Range -4V to -20V) |
-21V to -32V (Output Range -2V to -18V) | |
Physical | |
Housing Material | LMgSi 0.5 F22 |
Weight | ~120 grams (4.24 oz) |
Mounting | 4 Screws M5x20 (Included in Delivery) |
Connections: Transduer | Self-Locking Lemo-Plug |
Supply/Output | Screw Terminal Type (max.1.5mm2,wire) |
