EA902 913-902-000-011 A1-E4000-F0-G0 Extension Cable

EA902 913-902-000-011 A1-E4000-F0-G0 Extension Cable

The EA902 is high-quality, high-reliability extension cable, it is for use with a TQ9x2 proximity sensor (TQ902,TQ912, TQ922, TQ932 or TQ942) and IQS900 signal conditioner. For use in harsh environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).

A TQ902 based proximity measurement chain consists of a TQ902 proximity sensor, an optional EA902 extension cable and a IQS900 signal conditioner, configured for a particular industrial application. The EA902 extension cable is used to effectively lengthen the front-end, as required. Together, these form a calibrated proximity measurement chain in which each component is interchangeable.

Features

· Very high-quality, reliable extension cable for TQ9x2 proximity measurement chains

· 70 Ω coaxial cable with FEP insulation (Ø3.6 mm)

· 1-core, with shield

· Self-locking miniature coaxial connector (female) to self-locking miniature coaxial connector (male)

· Versions certified for use in potentially explosive atmospheres

· Conforms to API 670 5th edition

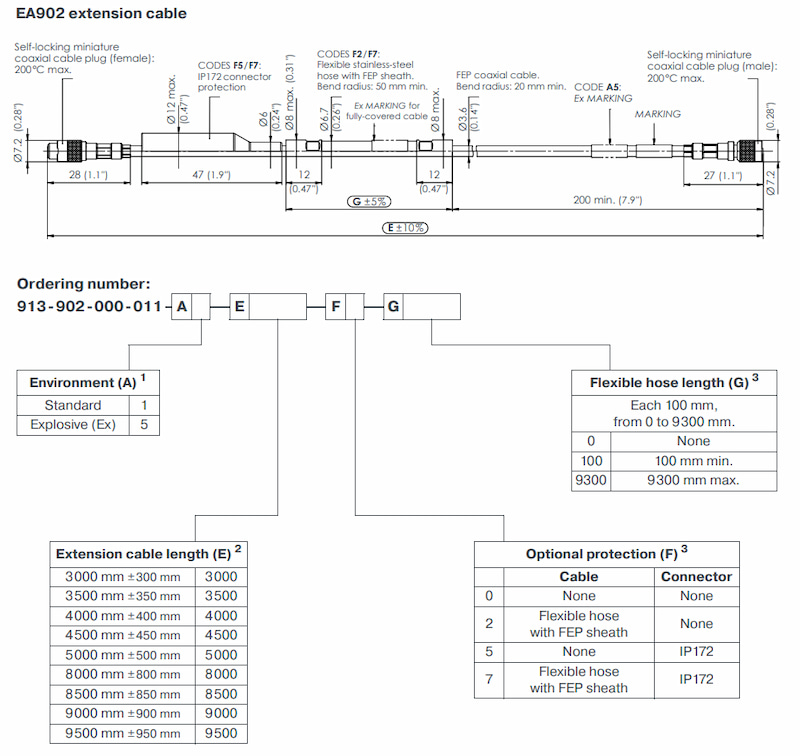

MECHANICAL DRAWINGS AND ORDERING INFORMATION

1. For use in hazardous areas (potentially explosive atmospheres), each component of a sensor / measurement chain (TQ902/TQ912, EA902 and IQS900) must be appropriately Ex certified, that is, with ordering option code A5.

2. The total system (chain) length = TQ902 or TQ912 integral cable length + EA902 extension cable length (E).

3. When optional protection such as a flexible stainless-steel hose with FEP sheath is ordered:

Flexible hose length (G) max. = EA902 extension cable length (E) − 200 mm, for an extension cable that is protected to the maximum extent possible (“fully-covered cable”).

Technical Specifications
