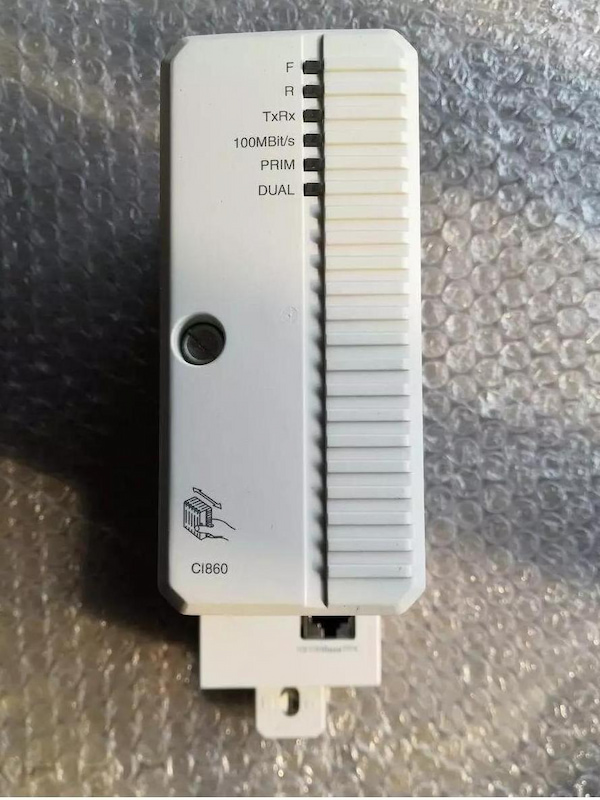

ABB CI860K01 FOUNDATION Fieldbus HSE Interface Module
Package including:
- CI860, Communication Interface
- TP860, Baseplate
Brand :
ABBPart number :
CI860K01 3BSE032444R1Description :
FOUNDATION Fieldbus HSE Interface ModuleOrigin :
SwedenCondition :
NewDimension :
127.5 mm x 185 mm x 59 mmWeight :
700 gPayment :
Bank Transfer
ABB CI860K01 3BSE032444R1 FOUNDATION Fieldbus HSE Interface Module
Functional Description
The CI860K01 can be used to connect an AC 800M controller to FOUNDATION Fieldbus High Speed Ethernet
through TCP/IP via Ethernet.
The TP860 Baseplate has one RJ45 Ethernet connector to connect the unit to the FOUNDATION Fieldbus
High Speed Ethernet.
The baseplate has a code lock, that prevents the installation of an incorrect type of unit onto the TP860
Baseplate.
The CI860 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that
supplies appropriate voltages from the +24 V supply via the CEX-Bus. The Ethernet cable must be connected
to an Ethernet device. To operate FOUNDATION Fieldbus H1 devices with the CI860 these H1 devices
must be connected via a FOUNDATION Fieldbus Linking Device (for example LD 800HSE) to adapt them to
FOUNDATION Fieldbus High Speed Ethernet.
Key Features
• Provides one Ethernet port, (RJ45 connector located on the TP860 Baseplate).
• Simple DIN-rail mounting.
• Provides communication with FOUNDATION Fieldbus High Speed Ethernet devices via Ethernet.
• Pre-set, two-letter Alpha code locking device installed in unit base prevents mounting of incompatible
components.
• Supports FF HSE redundancy.
• Supports hot swap.
Technical Specifications
| Manufacturer | ABB |
| Part Number | CI860K01 |
| Ordering Information | 3BSE032444R1 |
| Product Catalog | AC 800M |
| Description | FOUNDATION Fieldbus HSE Interface Module |
| Voltage | 24 Vdc |
| Current | 150 mA |
| Dimensions | 127.5 mm x 185 mm x 59 mm |
| Weight | 700 g |
