The PROFIBUS DP must be terminated at the two outermost nodes. This is usually done by using connectors with built-in termination. To guarantee a correct working termination the connector has to be plugged and power supplied. US$1,250.00
Brand :
ABBPart number :
CI854AK01 3BSE030220R1Description :
PROFIBUS-DP/V1 interfaceOrigin :
SwedenCondition :
NewDimension :
185 mm x 127.5 mm x 59 mmWeight :
700 gPayment :
Bank Transfer
3BSE030220R1
AC 800M COMMUNICATION INTERFACES
CI854AK01 PROFIBUS-DP/V1 interface
PROFIBUS DP is a high speed multipurpose bus protocol (up to 12Mbit/s) for interconnecting field devices, like remote I/O, drives, low voltage electrical equipment, and controllers.
PROFIBUS DP can be connected to the AC 800M via the CI854A communication interface. The CI854A includes two PROFIBUS ports to realize line redundancy and it also supports PROFIBUS master redundancy.
Master redundancy is supported in PROFIBUS-DP communication by using two CI854A communication interface modules. The master redundancy can be combined with CPU redundancy and CEXbus redundancy (BC810). The modules are mounted on a DIN rail and interface directly with the S800 I/O system, and other I/O systems as well, including all PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus proficient systems.
The PROFIBUS DP must be terminated at the two outermost nodes. This is usually done by using connectors with built-in termination. To guarantee a correct working termination the connector has to be plugged and power supplied.

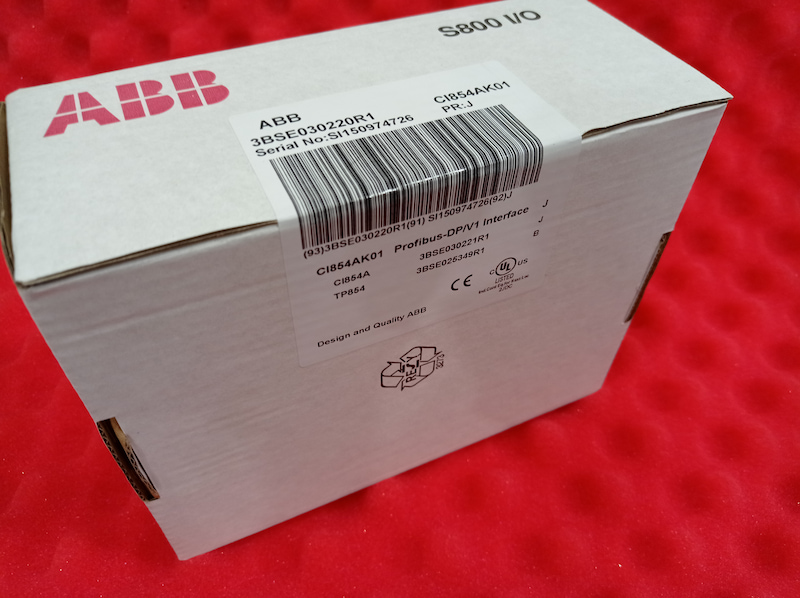

Package including: a CI854A Communication Interface and a TP854 Baseplate.
Technical Specifications
| Manufacturer | ABB |
| Part Number | CI854AK01 |
| Ordering Information | 3BSE030220R1 |
| Product Catalog | AC 800M Communication Modules |
| Description | PROFIBUS-DP/V1 interface |
| Transmission speed | 9.6 -12 000 kbit/s |
| 24V consumption typ. | 190mA |
| Temperature, Operating | +5 to +55 °C (+41 to +131 °F) |
| WEEE compliance | DIRECTIVE/2012/19/EU |
| Dimensions | 185 mm x 127.5 mm x 59 mm |
| Weight | 700 g |
Features and benefits:
Used for connecting remote I/O and fieldbus instruments via PROFIBUS DP
Possible to connect PROFIBUS PA to the CI854A/ CI854B via the PROFIBUS linking device LD 800P
The CI854A and newer CI854B can be set redundant
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
