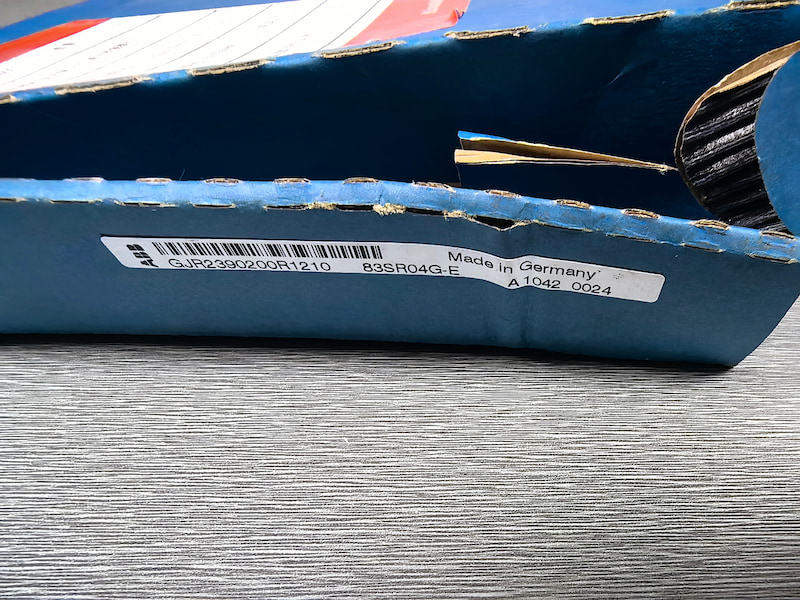

ABB 83SR04G-E GJR2390200R1210 Control Module

83SR04G-E GJR2390200R1210 Control Module

The ABB GJR2390200R1210 83SR04G-E Control Board is a high-performance component designed to ensure efficient and reliable operation within industrial automation systems.

The module is used for stored-program binary and analog control tasks on the drive, group and unit control levels.

It can be used for the following applications:

- Drive control of unidirectional drives

- Drive control of actuators

- Drive control of solenoid valves

- Binary function group control (sequential and logic)

- 3-step control

- Signal conditioning

The module is intended for use in connection with the multipurpose processing station.

The module can be operated in three different modes:

- Binary control mode (and analog basic functions) with variable cycle time

- Analog control mode (and binary control) with fixed, selectable cycle time

- Signal conditioning mode with fixed cycle time and disturbance bit output

The operating mode is selected by means of function block TXT1, which is the first to appear in the structure.

In the binary control mode, up to 4 binary function group controls or 4 drive controls, or combinations of drive and binary function group controls can be implemented for each module (noting the module cycle time).

In the analog control mode, a maximum of 4 analog control loops in the form of 3-step controllers - depending on the regulating time of the actuator - can be implemented for each module (see "Operating modes" ).

The module incorporates 4 hardware interfaces to the switchgear and the process.

Features

· The module address is set automatically by plugging the module into the PROCONTROL station.

· The telegrams received via the station-bus are checked by the module for error-free transfer via their parity bits.

· The telegrams sent by the module to the bus are provided with parity bits to ensure error-free transfer.

· The user program is filed in a non-volatile memory (EEPROM). It can be loaded and changed from the PDDS via the bus.

· The module is ready for operation as soon as a valid user list is loaded.

Technical Specifications
