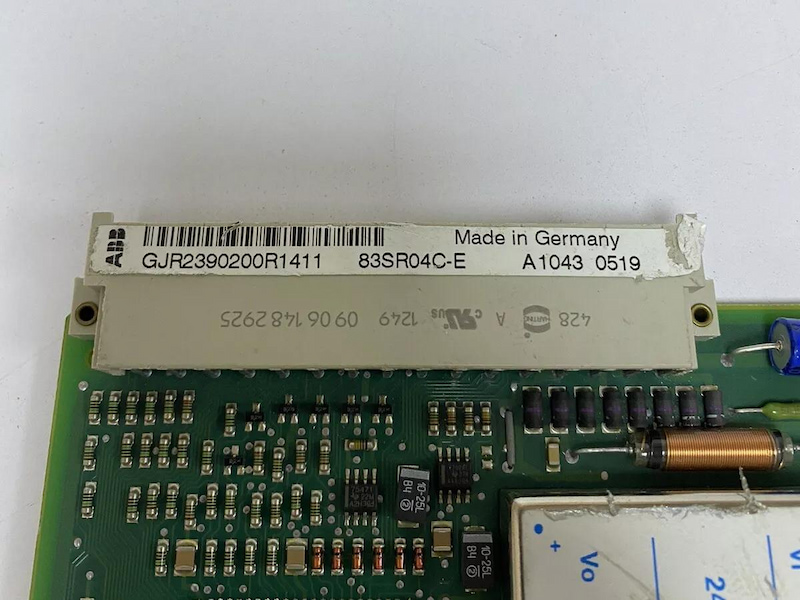

ABB 83SR04C-E GJR2390200R1411 Control Module

83SR04C-E GJR2390200R1411 Control Module

Module design

The 83SR04C-E GJR2390200R1411 control module essentially consists of the following:

- Process interface

- Station-bus interface

- Processing section

The operating program enables the microprocessor to run the basic operation of the module.

The memory for the function blocks contains prepared programs for performing various functions.

All function blocks and their inputs and outputs can be called up by the user via the engineering, documentation and service system (EDS) or via the programming, diagnosis and display system (PDDS).

The memory for the user program contains information on:

- how the function blocks are logically linked,

- which module inputs and outputs are assigned to which inputs and outputs of the function blocks,

- which fixed values are pre-specified for which inputs of the function blocks,

- which parameters are assigned to which inputs of the function blocks,

- which plant signals are assigned to which module inputs and outputs,

- which function blocks support the process interfaces,

- which limit value sets are assigned to the analog values,

- which function results, module input and output signals are simulated.

These data are defined by the user according to specific plant requirements.

For normal operation, the complete user program is filed in an EEPROM. For optimization purposes, a changed copy of the user program in the RAM can be used and stored later in the EEPROM after the optimization work is done.

Setting values can be specified by the user directly at the respective function block inputs or can be indicated in a separate parameter list.

If limit signals are formed by function block GRE, then the limit values (4 per GRE) are indicated in the limit value list.

Parameter and limit value lists can be changed any time during operation (on-line). They are assigned to RAM or EEPROM mode and are stored in the RAM or EEPROM.

The information between module and bus system is exchanged via the memory for the module input and output signals.
